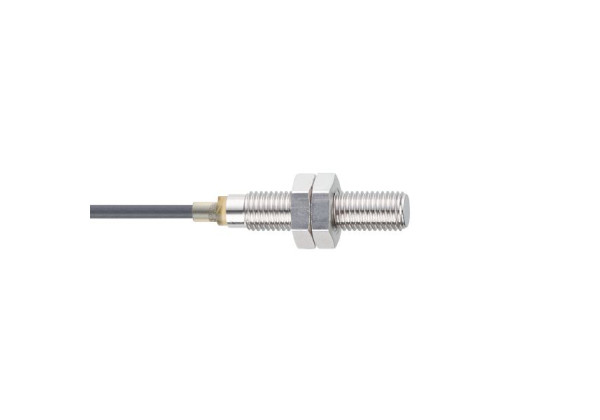

IEC214 Inductive full-metal sensor IEB3002BAPKG/AM/2M/PUR

Code: IEC214

For use in machine tools and metalworking
Resistant to oils and coolants
Metal sensing face for heavy duty
Long sensing range for high uptime
Permanently legible laser type label

Product characteristics

Electrical design	PNP
Output function	normally closed
Sensing range [mm]	2
Housing	threaded type
Dimensions [mm]	M8 x 1 / L = 37.5

Application

Special feature	Increased sensing range
Application	Use in machine tools, coolants and lubricants

Electrical data

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 10
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally closed
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	100
Short-circuit protection	yes
Overload protection	yes

Detection zone

Sensing range [mm]	2
Real sensing range Sr [mm]	2 ± 10 %
Operating distance [mm]	0...1.62
Increased sensing range	yes

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.7 / aluminium: 0.6 / copper: 0.5
Hysteresis [% of Sr]	1...20
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 65; IP 66; IP 67; IP 68; IP 69K

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	10 V
EN 55011	class B

Impact resistance

1 J

Vibration resistance

EN 60068-2-6 Fc

20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes

Shock resistance

EN 60068-2-27 Ea

100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes

Continuous shock resistance

EN 60068-2-27

40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes

Fast temperature change

EN 60068-2-14 Na

TA = -40 °C; TB = 85 °C; t1 = 30 min; t2 = < 10 s; 50 cycles

Salt spray test

EN 60068-2-52 Kb

severity level 5 (4 test cycles)

MTTF [years]

1449

Embedded software included

yes

UL approval

Ta	-25...70 °C
Enclosure type	Type 1
power supply	Limited Voltage/Current
UL Approval no.	A032
File number UL	E174191

Mechanical data

Weight [g]	40.5
Housing	threaded type
Mounting	flush mountable
Dimensions [mm]	M8 x 1 / L = 37.5
Thread designation	M8 x 1
Materials	stainless steel (1.4404 / 316L); sensing face: stainless steel (1.4404 / 316L); LED window: PEI; lock nuts: stainless steel (1.4404 / 316L)
Tightening torque [Nm]	< 5

Displays / operating elements

Display

switching status

1 LED, yellow

Accessories

Items supplied

lock nuts: 2

Remarks

Pack quantity	1 pcs.

Electrical connection - Cable

Connection	Cable: 2 m, PUR, Ø 2.9 mm; 3 x 0.14 mm²

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IEC214-00 — 19.11.2021 —
