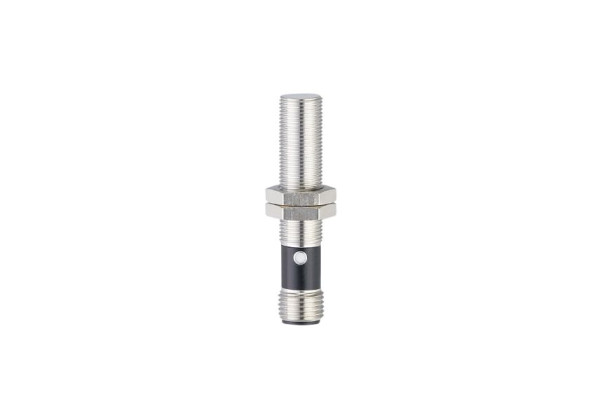

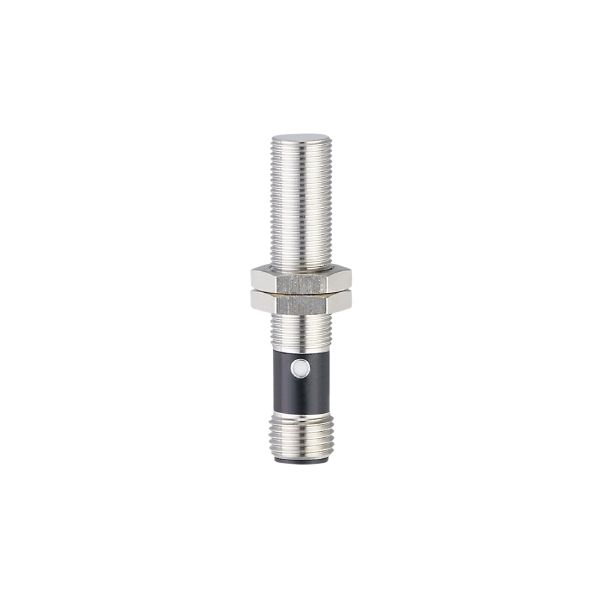

IF0311 - efector100-IFK2004BAROA/SL/LS-100AK RT
Brand: IFM Electronic
Code: IF0311
- With combined AC/DC output stage
- Large operating voltage range
- Two-wire technology
- Long sensing range for high uptime
- Robust metal housing for use in harsh industrial environments
Product characteristics
| Output function | normally open |
|---|---|
| Sensing range [mm] | 4 |
| Housing | threaded type |
| Dimensions [mm] | M12 x 1 |
Application
| Special feature | Increased sensing range |
|---|
Electrical data
| Frequency AC [Hz] | 47...63 |
|---|---|
| Operating voltage [V] | 20...140 AC / 10...140 DC |
| Protection class | I |
| Reverse polarity protection | no |
Outputs
| Output function | normally open |
|---|---|
| Max. voltage drop switching output DC [V] | 5 |
| Max. voltage drop switching output AC [V] | 5 |
| Minimum load current [mA] | 5 |
| Max. leakage current [mA] | 0.8 |
| Permanent current rating of switching output AC [mA] | 200 |
| Permanent current rating of switching output DC [mA] | 200 |
| Short-time current rating of switching output [mA] | 900; (20 ms / 0,5 Hz) |
| Switching frequency AC [Hz] | 25 |
| Switching frequency DC [Hz] | 200 |
| Short-circuit proof | no |
| Overload protection | no |
Detection zone
| Sensing range [mm] | 4 |
|---|---|
| Operating distance [mm] | 0...3.25 |
| Increased sensing range | yes |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2 |
|---|---|
| Hysteresis [% of Sr] | 3...15 |
Operating conditions
| Ambient temperature [°C] | -25...70 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
| ||||||||
|---|---|---|---|---|---|---|---|---|---|
| MTTF [years] | 999 | ||||||||
| UL approval |
|
Mechanical data
| Weight [g] | 31.2 |
|---|---|
| Housing | threaded type |
| Mounting | flush mountable |
| Dimensions [mm] | M12 x 1 |
| Thread designation | M12 x 1 |
| Materials | brass white bronze coated; PBT |
Displays / operating elements
| Display |
|
|---|
Electrical connection
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting |
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - plug
| Connection | Connector: 1 x 1/2"; coding: C |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IF0311-00 — 13.04.2023 —
