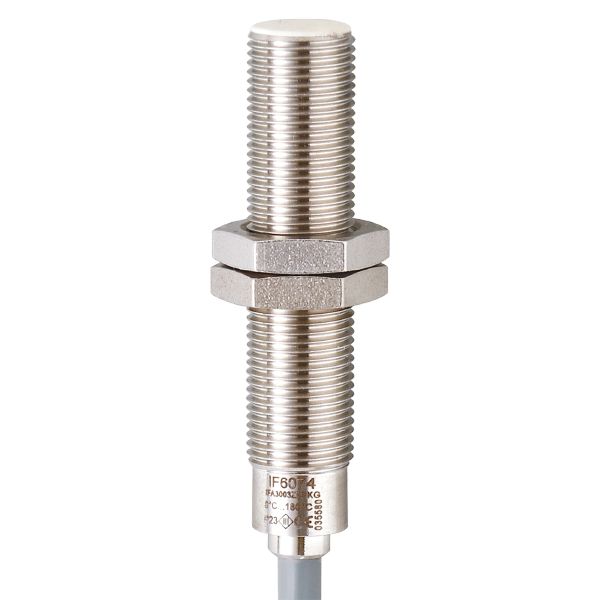

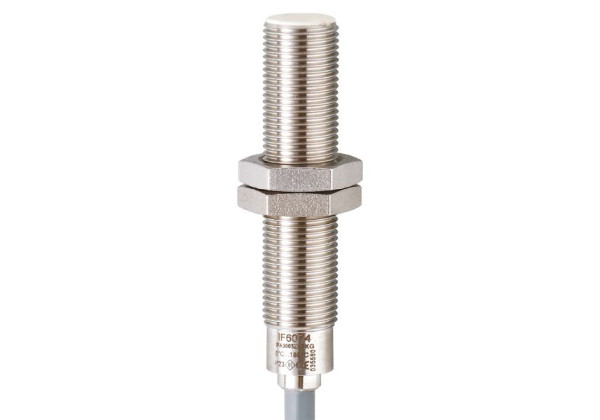

IF6074 - efector100-IFA3003ZBPKG/5M/SH

Code: IF6074

For use in high temperatures up to 150 °C
For use in the steel or glass industry
Sensor and evaluation unit in one housing
Robust stainless steel housing for use in harsh industrial environments
Long silicone cable terminals can be outside the critical area

Product characteristics

Electrical design	PNP
Output function	normally open
Sensing range [mm]	3
Housing	threaded type
Dimensions [mm]	M12 x 1 / L = 56

Application

Application	high-temperature applications

Electrical data

Operating voltage [V]	10...35 DC
Current consumption [mA]	< 15
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	120
Switching frequency DC [Hz]	500
Short-circuit proof	yes
Overload protection	yes

Detection zone

Sensing range [mm]	3
Operating distance [mm]	0...2.4

Accuracy / deviations

Correction factor	stainless steel: 0.6 / brass: 0.3 / aluminium: 0.2 / copper: 0.1
Hysteresis [% of Sr]	3...15
Switch point drift [% of Sr]	-15...15

Operating conditions

Ambient temperature [°C]	0...150
Protection	IP 65

Tests / approvals

EMC

EN 61000-4-2 ESD	2 kV CD / 4 kV AD
EN 61000-4-3 HF radiated	3 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	3 V

MTTF [years]

1273

Mechanical data

Weight [g]	220.5
Housing	threaded type
Mounting	flush mountable
Dimensions [mm]	M12 x 1 / L = 56
Thread designation	M12 x 1
Materials	threaded sleeve: stainless steel; sensing face: LCP

Accessories

Items supplied

lock nuts: 2

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 5 m, silicone; highly flexible
