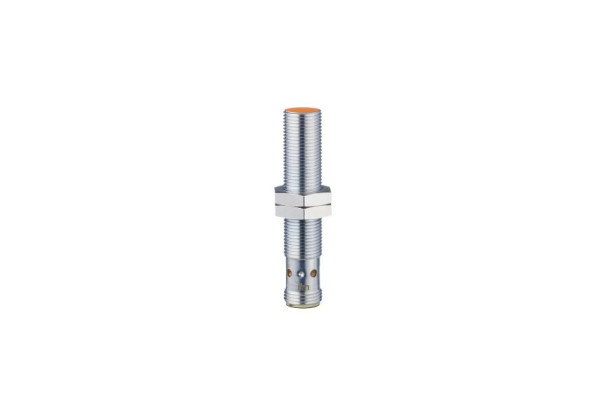

IF6123 ifm electronic 60mm Flush Mount Mount , Inductive Sensor PNP/NPN-NO/NC Output, 3.75 mm Detection , IP65, IP66, IP67,
Brand: IFM Electronic
Code: IF6123
- For a precise position monitoring on machines
- Reliable transmission of the distance as linearised process value via IO-Link
- Flexible use thanks to large operating temperature range
- Very high repeatability
- Normally closed / normally open and PNP/NPN adjustable via IO-Link
Product characteristics
| Electrical design | PNP/NPN; (parameterisable) |
|---|---|
| Output function | normally open / normally closed; (parameterisable) |
| Communication interface | IO-Link |
| Housing | threaded type |
| Dimensions [mm] | M12 x 1 / L = 60 |
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | < 15 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP/NPN; (parameterisable) |
|---|---|
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 600 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Switch point IO-Link [mm] | 0.7...3.51; (parameterisable) |
|---|---|
| Measuring range IO-Link [mm] | 0.375...3.75 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.8 / brass: 0.5 / aluminium: 0.5 / copper: 0.4 |
|---|---|
| Hysteresis [% of Sr] | 3...15 |
| Linearity error IO-Link [%] | ± 2 %; (of the final value of the measuring range) |
| Repeatability IO-Link [%] | ± 1 %; (of the final value of the measuring range) |
| Temperature coefficient | of the final value of the measuring range |
| Temperature coefficient [%/K vom MEW] | ± 0,3 |
Interfaces
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 CDV | ||||
| Profiles | Smart Sensor: Device Identification; Device Diagnosis; Device Teach Channel; Binary Data Channel; Process Data Variable | ||||
| SIO mode | yes | ||||
| Required master port type | A | ||||
| Min. process cycle time [ms] | 3 | ||||
| Supported DeviceIDs |
|
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Protection | IP 65; IP 66; IP 67; IP 68; IP 69K |
Tests / approvals
| EMC |
| ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Vibration resistance |
| ||||||||||
| Shock resistance |
| ||||||||||
| Continuous shock resistance |
| ||||||||||
| Fast temperature change |
| ||||||||||
| MTTF [years] | 668 | ||||||||||
| Embedded software included | yes | ||||||||||
| UL approval |
|
Mechanical data
| Weight [g] | 28 |
|---|---|
| Housing | threaded type |
| Mounting | flush mountable |
| Dimensions [mm] | M12 x 1 / L = 60 |
| Thread designation | M12 x 1 |
| Materials | brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector: 1 x M12; coding: A |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IF6123-02 — 02.10.2023 —
