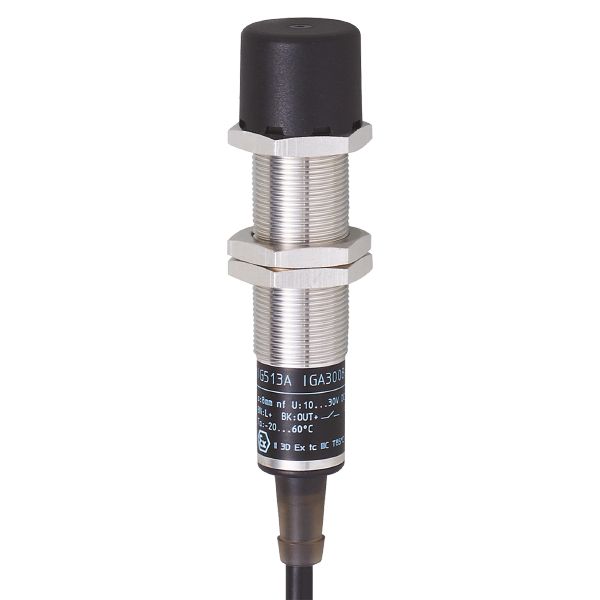

IG513A Inductive sensor IGA3008-BPKG/3D
Brand: IFM Electronic
Code: IG513A
- For applications in hazardous areas
- High protection rating for the requirements of harsh industrial environments
- Direct connection to plant control without switching amplifier
- With preinstalled protective cover
- Robust metal housing for use in harsh industrial environments
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Sensing range [mm] | 8 |
| Housing | threaded type |
| Dimensions [mm] | M18 x 1 / L = 80 |
Application
| Installation | use in hazardous areas only with installed protective cover |
|---|
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | < 15 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 150 |
| Switching frequency DC [Hz] | 300 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Sensing range [mm] | 8 |
|---|---|
| Real sensing range Sr [mm] | 8 ± 10 % |
| Operating distance [mm] | 0...6.48 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2 |
|---|---|
| Hysteresis [% of Sr] | 1...20 |
| Switch point drift [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature [°C] | -20...60 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| ATEX marking | | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EMC |
| ||||||||||||
| MTTF [years] | 1853 |
Mechanical data
| Weight [g] | 193.5 |
|---|---|
| Housing | threaded type |
| Mounting | non-flush mountable |
| Dimensions [mm] | M18 x 1 / L = 80 |
| Thread designation | M18 x 1 |
| Materials | brass white bronze coated; sensing face: PBT; lock nuts: brass white bronze coated; Protective cover: PA |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Cable: 2 m, PUR; 3 x 0.50 mm² |
|---|
