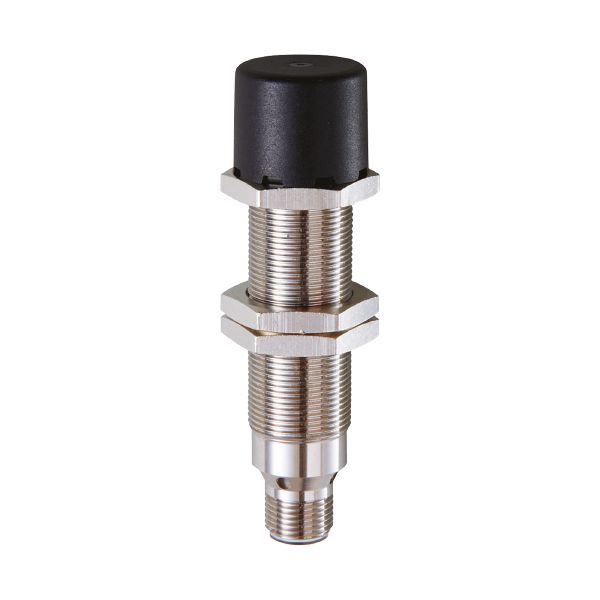

IG514A Inductive sensor IGA4010-CPKG/V4A/US/3D
Brand: IFM Electronic
Code: IG514A
- For applications in hazardous areas
- Complementary output function NO/NC
- Direct connection to plant control without switching amplifier
- With preinstalled protective cover
- Robust metal housing for use in harsh industrial environments
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | complementary |
| Sensing range [mm] | 10 |
| Housing | threaded type |
| Dimensions [mm] | M18 x 1 / L = 80 |
Application
| Installation | use in hazardous areas only with installed protective cover |
|---|
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | < 20 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | complementary |
| Max. voltage drop switching output DC [V] | 2.5 |
| Max. leakage current [mA] | 0.1 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 300 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Sensing range [mm] | 10 |
|---|---|
| Real sensing range Sr [mm] | 10 ± 10 % |
| Operating distance [mm] | 0...8.1 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2 |
|---|---|
| Hysteresis [% of Sr] | 1...20 |
| Switch point drift [% of Sr] | -15...15 |
Operating conditions
| Ambient temperature [°C] | -20...60 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| ATEX marking | | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| EMC |
| ||||||||||
| MTTF [years] | 1326 |
Mechanical data
| Weight [g] | 101.8 |
|---|---|
| Housing | threaded type |
| Mounting | non-flush mountable |
| Dimensions [mm] | M18 x 1 / L = 80 |
| Thread designation | M18 x 1 |
| Materials | housing: stainless steel (1.4404 / 316L); sensing face: PBT orange; lock nuts: stainless steel; Protective cover: PA |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connection | Connector: 1 x M12; coding: A |
|---|
