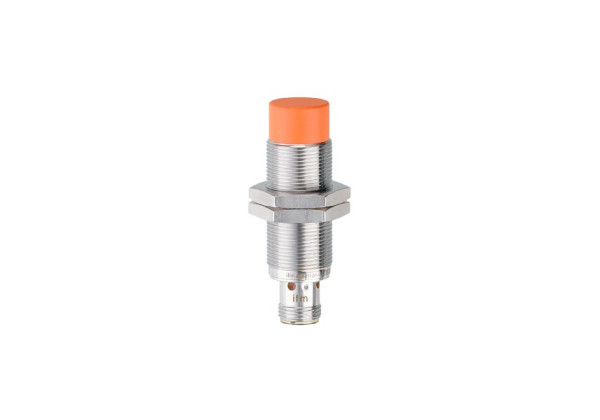

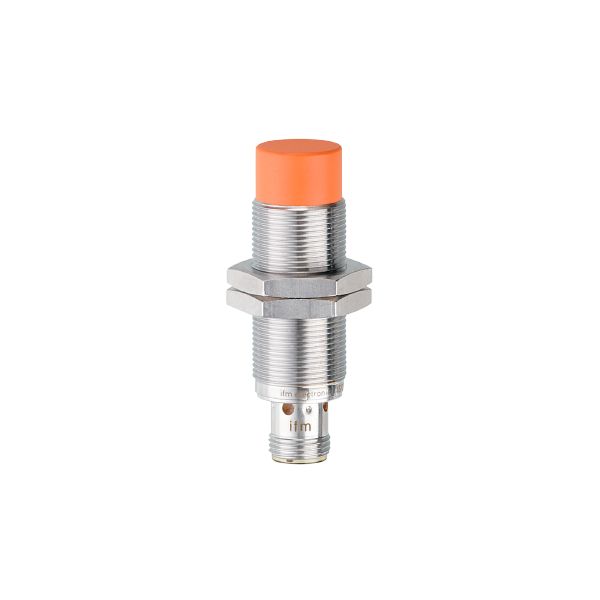

IG6215 Inductive sensor with IO-Link IGK4012-FRKG/IO/US-104

Code: IG6215

For a precise position monitoring on machines
Reliable transmission of the distance as linearised process value via IO-Link
Flexible use thanks to large operating temperature range
Very high repeatability
Normally closed / normally open and PNP/NPN adjustable via IO-Link

Product characteristics

Electrical design	PNP/NPN; (parameterisable)
Output function	normally open / normally closed; (parameterisable)
Communication interface	IO-Link
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 60

Electrical data

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 15
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design

PNP/NPN; (parameterisable)

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

100

Switching frequency DC [Hz]

300

Notes on switching frequency [Hz]

IO-Link mode: 100

Short-circuit protection

yes

Overload protection

yes

Detection zone

Switch point IO-Link [mm]	2.4...12.1; (parameterisable)
Measuring range IO-Link [mm]	1.3...13

Accuracy / deviations

Correction factor

steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.5 / copper: 0.4

Hysteresis [% of Sr]

3...15

Note on hysteresis

parameterisable

Linearity error IO-Link [%]

± 2; (of the final value of the measuring range)

Repeatability analogue output [%]

± 1; (of the final value of the measuring range)

Temperature coefficient [%/K vom MEW]

± 0,3

Temperature drift

± 10 %; (of the final value of the measuring range)

Interfaces

Communication interface

IO-Link

Transmission type

COM2 (38,4 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9

Profiles

Smart Sensor: Identification and diagnosis; Multi-channel, two setpoint switching sensor, type 0 Generic Profiled Sensor; Teach Channel

SIO mode

yes

Required master port type

Min. process cycle time [ms]

3.2

IO-Link process data (cyclical)

function	bit length
process value	16
device status	4
binary switching information	2

IO-Link functions (acyclical)

switching cycles counter; switch-on cycle counter; operating hours counter; internal temperature; application specific tag

Supported DeviceIDs

Type of operation	DeviceID
Default	1344

Note

For further information please see the IODD PDF file under "Downloads"

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 65; IP 66; IP 67; IP 68; IP 69K

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	10 V
EN 55011	class B

Vibration resistance

EN 60068-2-6 Fc

20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes

Shock resistance

EN 60068-2-27 Ea

100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes

Continuous shock resistance

EN 60068-2-27 Ea

40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes

Fast temperature change

EN 60068-2-14 Na

TA = -40 °C; TB = 85 °C; t1 = 30 min; t2 = < 10 s; 50 cycles

MTTF [years]

599

Embedded software included

yes

UL approval

Ta	-25...70 °C
Enclosure type	Type 1
power supply	Limited Voltage/Current
UL Approval no.	A034
File number UL	E174191

Mechanical data

Weight [g]	46.5
Housing	threaded type
Mounting	non-flush mountable
Dimensions [mm]	M18 x 1 / L = 60
Thread designation	M18 x 1
Materials	brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated

Displays / operating elements

Display

switching status

4 x LED, yellow lights

Accessories

Items supplied

lock nuts: 2

Remarks

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A
