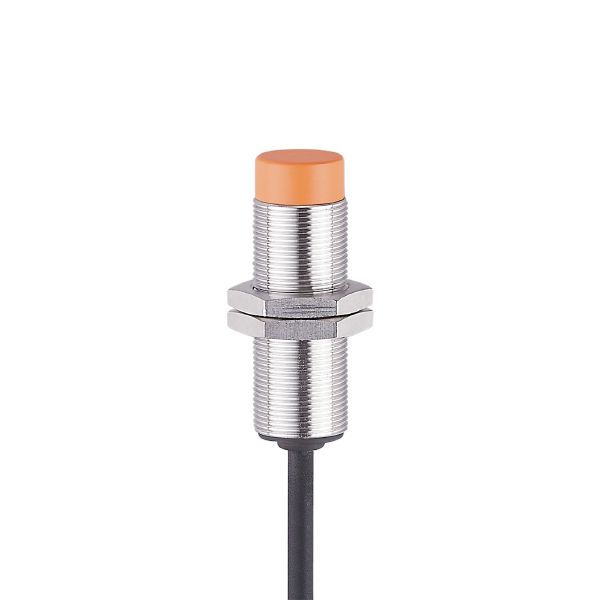

IG6621 Inductive sensor IGK3008A1PKG/0,2M/PUR

Code: IG6621

Precise linearised output signal
Very high repeatability
For non-contact distance measurement
Wide operating temperature range
Robust metal housing for use in harsh industrial environments

Product characteristics

Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 54

Electrical data

Operating voltage [V]	15...30 DC
Current consumption [mA]	< 20
Protection class	II
Reverse polarity protection	yes

Outputs

Analogue current output [mA]	4...20; (linear; gradient: 2,22 mA/mm; for frontal approach and for target made of mild steel: 24 x 24 x 1 mm)
Max. load [Ω]	500
Short-circuit protection	yes
Overload protection	yes

Detection zone

Measuring range [mm]	0.8...8

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Linearity error of analogue output [%]	± 1 %; (of IA max)
Repeatability analogue output [%]	± 1 %; (of IA max)

Response times

Response time [ms]	< 10

Operating conditions

Ambient temperature [°C]	-40...80
Protection	IP 67

Tests / approvals

MTTF [years]	952

Mechanical data

Weight [g]	79.06
Housing	threaded type
Mounting	non-flush mountable
Dimensions [mm]	M18 x 1 / L = 54
Thread designation	M18 x 1
Materials	housing: brass white bronze coated; sensing face: PBT

Displays / operating elements

Display

target in measuring range	yellow lights
target outside measuring range	yellow flashing

Accessories

Items supplied

lock nuts: 2

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 0.2 m, PUR, Ø 4 mm; burning behaviour to ECE R118 rev. 2; 3 x 0.50 mm²

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IG6621-00 — 13.04.2023 —
