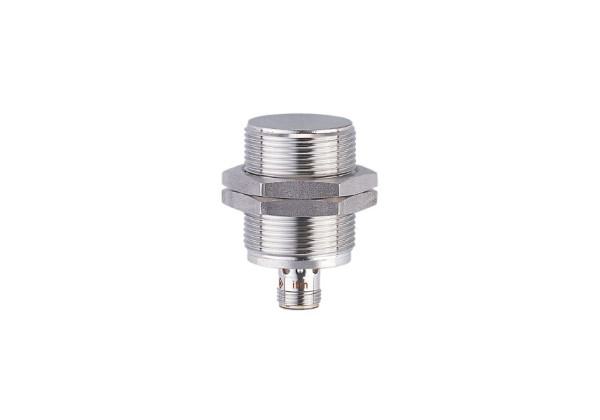

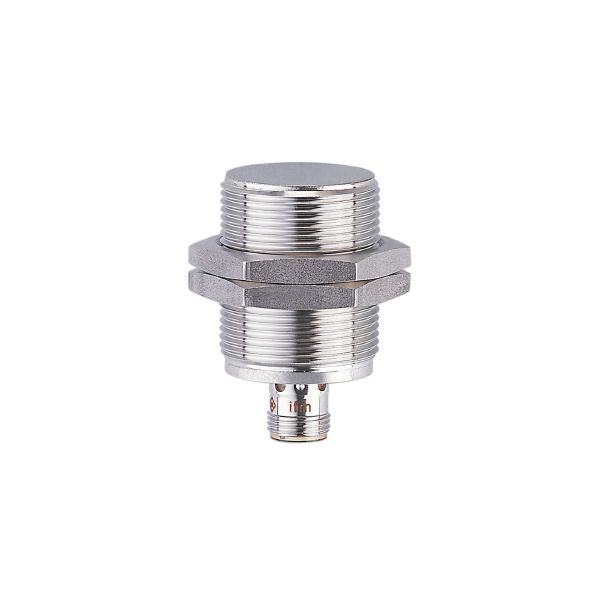

II506A Inductive full-metal sensor IIB3015BBPKG/AM/US-104/3G/3D

II506A Inductive full-metal sensor IIB3015BBPKG/AM/US-104/3G/3D

Code: II506A
  • For applications in hazardous areas
  • High protection rating for the requirements of harsh industrial environments
  • Metal sensing face for heavy duty
  • Special mechanical stability ensures high plant safety
  • Clearly visible indication of the switching status
Product characteristics
Electrical design PNP
Output function normally open
Sensing range [mm] 15
Housing threaded type
Dimensions [mm] M30 x 1.5 / L = 50
Application
Special feature Gold-plated contacts; Increased sensing range; Full-metal housing
Pressure rating [bar] 100
Note on pressure rating
sensing face
Electrical data
Operating voltage [V] 10...30 DC
Current consumption [mA] < 10
Protection class III
Reverse polarity protection yes
Outputs
Electrical design PNP
Output function normally open
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 100
Switching frequency DC [Hz] 50
Short-circuit protection yes
Overload protection yes
Detection zone
Sensing range [mm] 15
Real sensing range Sr [mm] 15 ± 10 %
Operating distance [mm] 0...12.15
Increased sensing range yes
Accuracy / deviations
Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.6 / aluminium: 0.5 / copper: 0.2
Hysteresis [% of Sr] 1...15
Operating conditions
Ambient temperature [°C] 0...60
Note on ambient temperature
when used outside the hazardous area: 0...100°C
Protection IP 67; (when used outside the hazardous area: IP 65, IP 66, IP 67, IP 68, IP 69K)
Tests / approvals
ATEX marking Ex II 3D Ex tc IIIC T85° C Dc X
Ex II 3G Ex nA IIC T6 Gc X
EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated 10 V/m
EN 61000-4-4 Burst 2 kV
EN 61000-4-6 HF conducted 10 V
EN 55011 emission class B
MTTF [years] 1217
Mechanical data
Weight [g] 135
Housing threaded type
Mounting flush mountable
Dimensions [mm] M30 x 1.5 / L = 50
Thread designation M30 x 1.5
Materials stainless steel (1.4404 / 316L); sensing face: stainless steel (1.4404 / 316L); LED window: PEI; lock nuts: stainless steel (1.4404 / 316L)
Tightening torque [Nm] 70
Full-metal housing yes
Displays / operating elements
Display
switching status 4 x LED, yellow
Accessories
Items supplied
lock nuts: 2
Remarks
Pack quantity 1 pcs.
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — II506A — 06.01.2020 —
