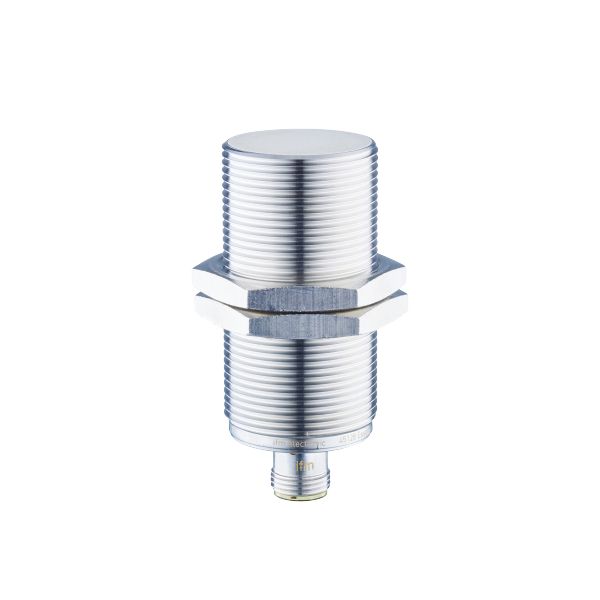

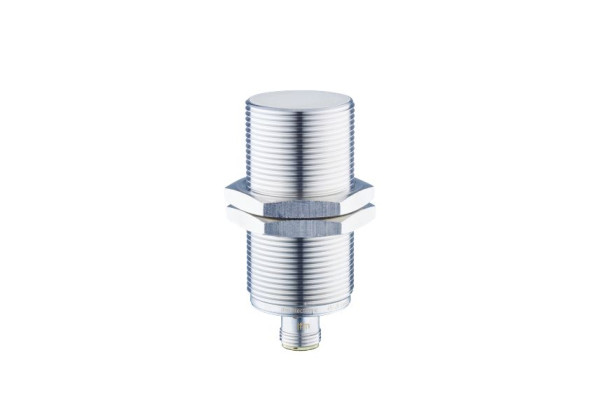

IIC208 - efector100-IIK2015BFRKG/M/2LED/US-104-IRF
Brand: IFM Electronic
Code: IIC208
- Robust housing for use in metalworking
- Resistant to oils and coolants
- Long sensing range for high uptime
- Output function normally open / normally closed programmable
- With optical mounting and setting aid
Product characteristics
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Sensing range [mm] | 15 |
| Housing | threaded type |
| Dimensions [mm] | M30 x 1.5 / L = 70 |
Application
| Special feature | Gold-plated contacts; Increased sensing range; Optical setting aid |
|---|---|
| Application | Use in machine tools, coolants and lubricants |
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Max. voltage drop switching output DC [V] | 4.6 |
| Minimum load current [mA] | 4 |
| Max. leakage current [mA] | 1 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 100 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Sensing range [mm] | 15 |
|---|---|
| Operating distance [mm] | 0...12.1 |
| Increased sensing range | yes |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.5 / copper: 0.4 |
|---|---|
| Hysteresis [% of Sr] | 1...15 |
Operating conditions
| Ambient temperature [°C] | -25...70 |
|---|---|
| Protection | IP 68; ("Coolant") |
Tests / approvals
| EMC |
| ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MTTF [years] | 1424 |
Mechanical data
| Weight [g] | 134.5 |
|---|---|
| Housing | threaded type |
| Mounting | flush mountable |
| Dimensions [mm] | M30 x 1.5 / L = 70 |
| Thread designation | M30 x 1.5 |
| Materials | housing: brass white bronze coated; sensing face: LCP white; LED window: PEI; lock nuts: brass white bronze coated |
| Tightening torque [Nm] | 50 |
Displays / operating elements
| Display |
| ||||
|---|---|---|---|---|---|
| Optical setting aid | yes |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IIC208-01 — 30.10.2023 —
