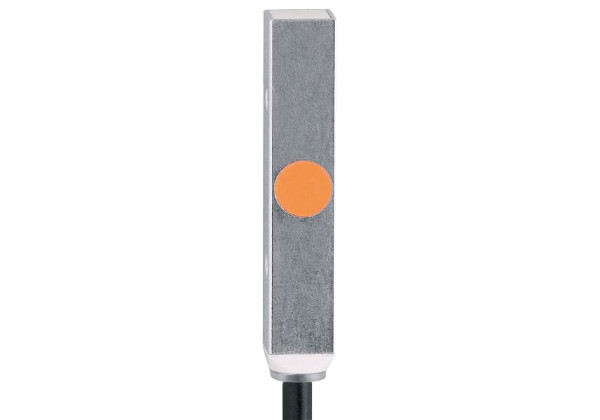

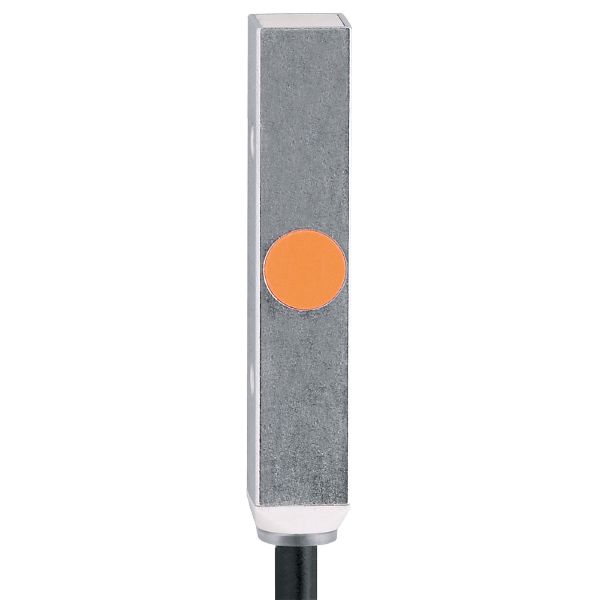

IL5003 - efector100-ILA3002-BPKG/MITTIG/PH RT

Code: IL5003

Particularly compact rectangular design
For use where space is restricted
Space-saving connection technology
Clearly visible indication of the switching status
Very high switching frequency

Product characteristics

Electrical design	PNP
Output function	normally open
Sensing range [mm]	2
Housing	rectangular
Dimensions [mm]	40 x 8 x 8

Electrical data

Operating voltage [V]	10...36 DC
Current consumption [mA]	15; (24 V)
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	2000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	2
Real sensing range Sr [mm]	2 ± 10 %
Operating distance [mm]	0...1.6

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 65

Tests / approvals

EMC

EN 60947-5-2
EN 55011	class B

MTTF [years]

3449

UL approval

Ta	-25...70 °C
Enclosure type	Type 1
power supply	Limited Voltage/Current
File number UL	E174191

Mechanical data

Weight [g]	42.3
Housing	rectangular
Mounting	flush mountable
Dimensions [mm]	40 x 8 x 8
Materials	brass white bronze coated; sensing face: LCP
Tightening torque [Nm]	1; (insertion depth: > 5 mm)

Displays / operating elements

Display

switching status

1 x LED, red

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PUR / PVC; 3 x 0.14 mm²

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IL5003-01 — 13.04.2023 —
