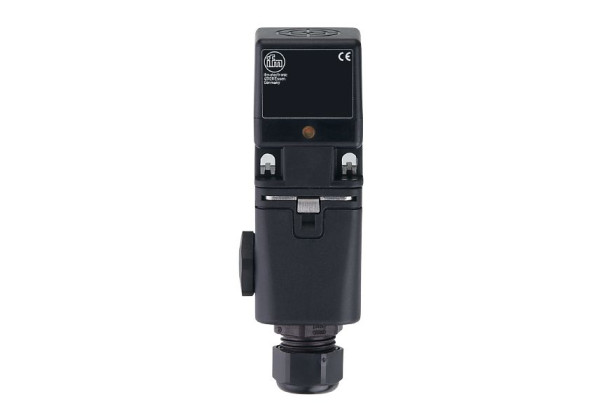

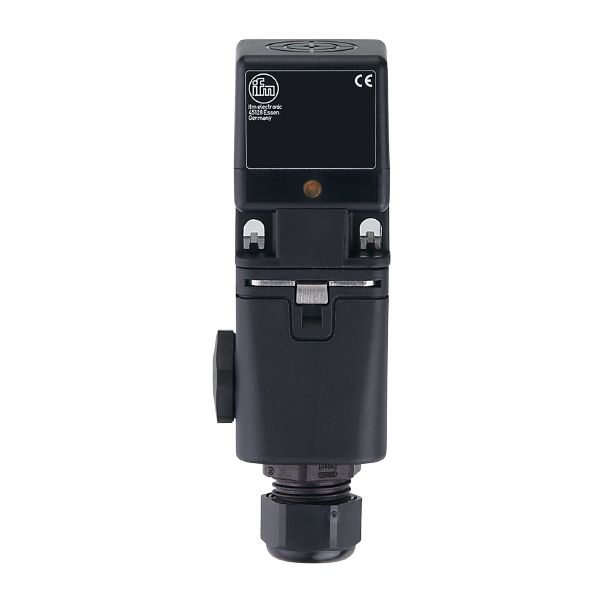

IM002A - efector100-IME2040-FBOA/3D
Brand: IFM Electronic
Code: IM002A
- For applications in hazardous areas
- With combined AC/DC output and two-wire technology
- Output function normally open / normally closed programmable
- Robust housing for use in harsh industrial environments
- Five positions of the sensing face selectable
Product characteristics
| Output function | normally open / normally closed; (selectable) |
|---|---|
| Sensing range [mm] | 40 |
| Housing | rectangular |
| Dimensions [mm] | 40 x 40 x 105 |
Electrical data
| Operating voltage [V] | 20...250 AC/DC |
|---|---|
| Protection class | II |
| Reverse polarity protection | no |
Outputs
| Output function | normally open / normally closed; (selectable) | |
|---|---|---|
| Max. voltage drop switching output DC [V] | 6 | |
| Max. voltage drop switching output AC [V] | 6.5 | |
| Minimum load current [mA] | 5 | |
| Max. leakage current [mA] | 2.5 (250 V AC) / 1.3 (130 V AC) / 0.8 (24 V DC) | |
| Permanent current rating of switching output AC [mA] | 150 | |
| Permanent current rating of switching output DC [mA] | 100 | |
| Short-time current rating of switching output [mA] | 2200; (20 ms / 0,5 Hz) | |
| Switching frequency AC [Hz] | 10 | |
| Switching frequency DC [Hz] | 10 | |
| Notes on switching frequency [Hz] |
| |
| Short-circuit proof | no | |
| Overload protection | no |
Detection zone
| Sensing range [mm] | 40 |
|---|---|
| Real sensing range Sr [mm] | 40 ± 10 % |
| Operating distance [mm] | 0...32.4 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2 |
|---|---|
| Hysteresis [% of Sr] | 1...20 |
| Switch point drift [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature [°C] | -20...60 |
|---|---|
| Protection | IP 65; IP 67 |
Tests / approvals
| ATEX marking | | ||
|---|---|---|---|
| EMC |
| ||
| MTTF [years] | 554 |
Mechanical data
| Weight [g] | 253 |
|---|---|
| Housing | rectangular |
| Mounting | non-flush mountable |
| Dimensions [mm] | 40 x 40 x 105 |
| Materials | PC; PA; stainless steel |
Displays / operating elements
| Display |
|
|---|
Electrical connection
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting; Place the fuse outside the hazardous area. |
|---|
Remarks
| Remarks |
| ||
|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | terminals: 0.34...2.5 mm²; Cable sheath: Ø 5...9 mm |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — IM002A — 24.04.2023 —
