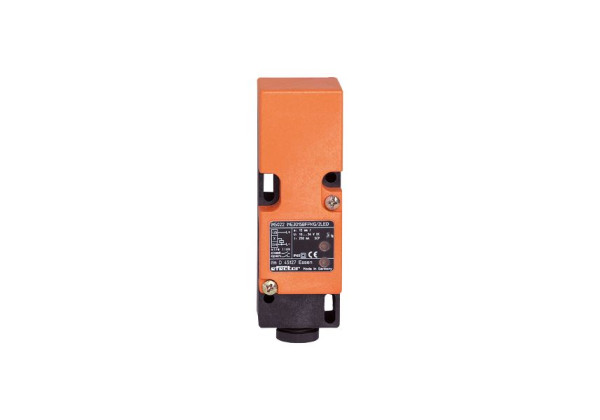

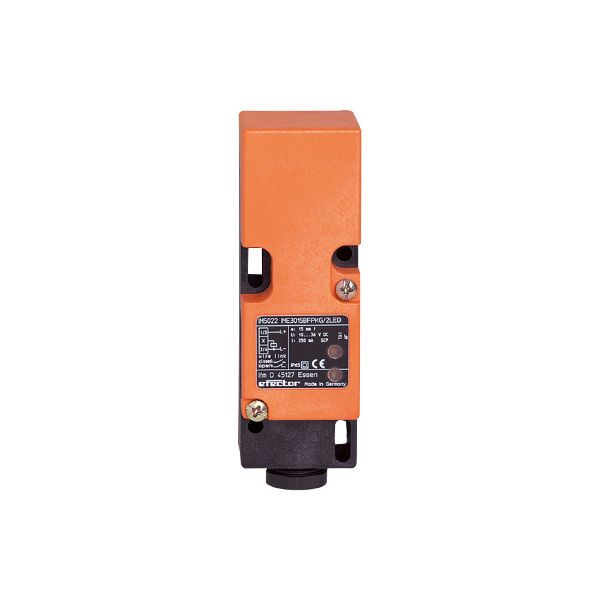

IM5019 - efector100-IME3020-FPKG

Code: IM5019

Long sensing range for use in conveying
Output function normally open / normally closed programmable
Robust housing for use in harsh industrial environments
Clearly visible indication of the switching status

Product characteristics

Electrical design	PNP
Output function	normally open / normally closed; (selectable)
Sensing range [mm]	20
Housing	rectangular
Dimensions [mm]	40 x 40 x 120

Electrical data

Operating voltage [V]	10...36 DC
Current consumption [mA]	15; (24 V)
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open / normally closed; (selectable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	300
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	20
Real sensing range Sr [mm]	20 ± 10 %
Operating distance [mm]	0...16.2

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 65

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD
EN 61000-4-3 HF radiated	3 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	3 V
EN 55011	class B

MTTF [years]

1727

UL approval

Ta	0...40 °C
Enclosure type	Type 1
power supply	Hazardous voltage
File number UL	E174191

Mechanical data

Weight [g]	187.5
Housing	rectangular
Mounting	non-flush mountable
Dimensions [mm]	40 x 40 x 120
Materials	PPE

Displays / operating elements

Display

switching status

1 x LED, yellow

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	terminals:...2.5 mm²; Cable sheath: Ø 7...13 mm; Cable gland: M20 X 1.5

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IM5019-00 — 06.03.2003 —
