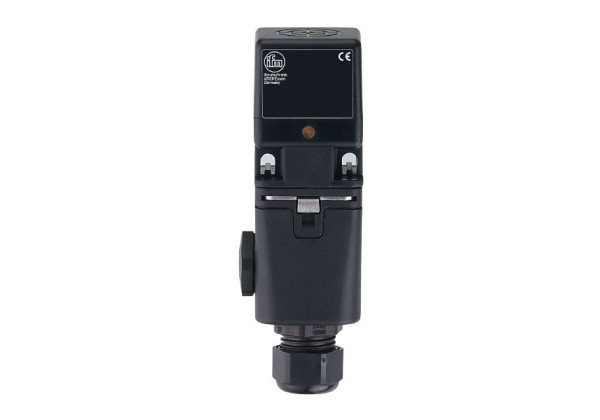

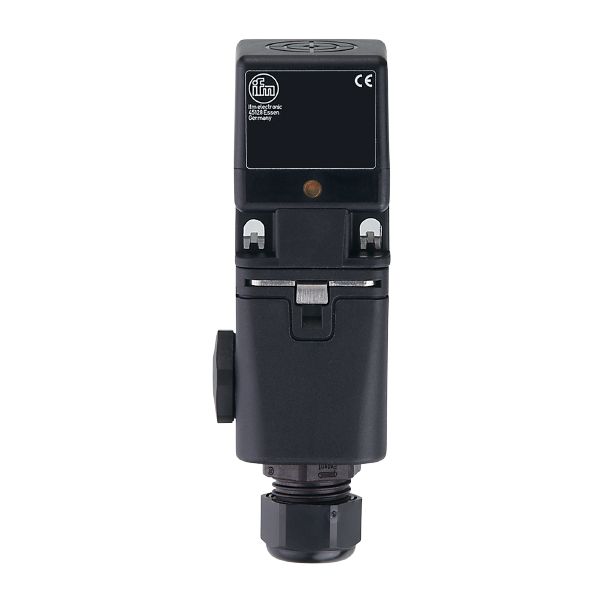

IM508A - efector100-IME2020BFRKG/3D
Brand: IFM Electronic
Code: IM508A
- For applications in hazardous areas
- Two-wire technology
- Output function normally open / normally closed programmable
- Robust housing for use in harsh industrial environments
- Five positions of the sensing face selectable
Product characteristics
| Output function | normally open / normally closed; (selectable) |
|---|---|
| Sensing range [mm] | 20 |
| Housing | rectangular |
| Dimensions [mm] | 40 x 40 x 105 |
Electrical data
| Operating voltage [V] | 10...55 DC |
|---|---|
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Output function | normally open / normally closed; (selectable) |
|---|---|
| Max. voltage drop switching output DC [V] | 4.6 |
| Minimum load current [mA] | 5 |
| Max. leakage current [mA] | 1 |
| Permanent current rating of switching output DC [mA] | 150 |
| Switching frequency DC [Hz] | 100 |
| Short-circuit proof | yes |
| Overload protection | yes |
Detection zone
| Sensing range [mm] | 20 |
|---|---|
| Real sensing range Sr [mm] | 20 ± 10 % |
| Operating distance [mm] | 0...16.2 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2 |
|---|---|
| Hysteresis [% of Sr] | 1...20 |
| Switch point drift [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature [°C] | -20...60 |
|---|---|
| Protection | IP 65; IP 67 |
Tests / approvals
| ATEX marking | | ||
|---|---|---|---|
| EMC |
| ||
| MTTF [years] | 1608 |
Mechanical data
| Weight [g] | 244 |
|---|---|
| Housing | rectangular |
| Mounting | flush mountable |
| Dimensions [mm] | 40 x 40 x 105 |
| Materials | PC; PA; stainless steel |
Displays / operating elements
| Display |
|
|---|
Remarks
| Remarks |
| ||
|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | terminals: 0.34...1.5 mm²; Cable sheath: Ø 5...9 mm |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — IM508A — 24.04.2023 —
