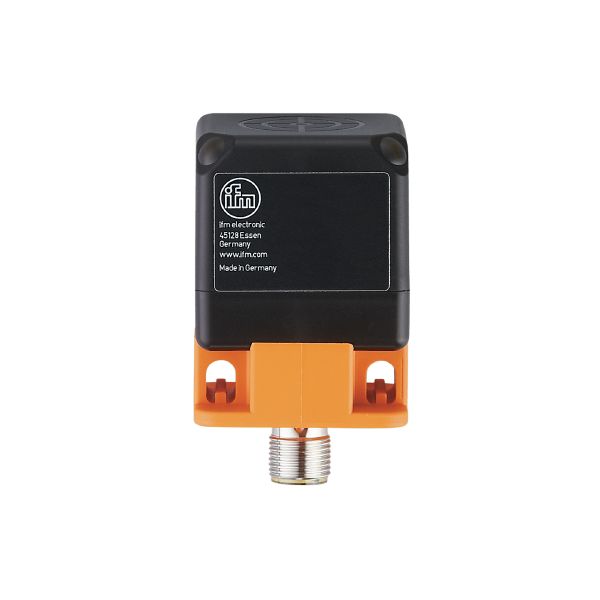

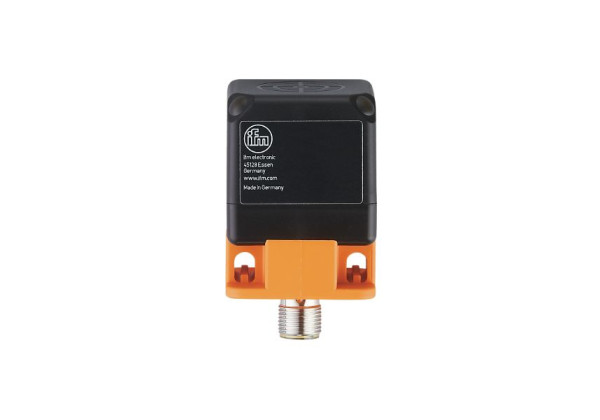

IM5118 - efector100-IMC2015-ASI /US-100-DPS

Code: IM5118

With AS-i interface
Long sensing range for use in conveying
Five positions of the sensing face selectable
LED display to check switching status and operation
Corner LEDs clearly visible in any mounted position

Product characteristics

Electrical design	AS-i
Sensing range [mm]	15
Housing	rectangular
Dimensions [mm]	40 x 40 x 54

Electrical data

Operating voltage [V]	26.5...31.6 DC
Current consumption [mA]	< 35
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	AS-i
Switching frequency DC [Hz]	100

Detection zone

Sensing range [mm]	15
Operating distance [mm]	0...12.1

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.5 / copper: 0.4
Hysteresis [% of Sr]	1...20
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 67

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	10 V
EN 55011	class B

MTTF [years]

958

AS-i classification

AS-i version

3.0

Extended addressing mode

yes

AS-i I/O configuration [hex]

AS-i ID code [hex]

A.E

AS-i certificate

71901

Assignment of the data bits

Designation	switching signal	unsafe zone	readiness for operation	not used
status = 0	target outside the active zone, yellow LED off	target within the uncertain zone, red LED flashes	unit faulty or distance to medium < 10 %, red LED flashes	-
status = 1	target within the active zone, yellow LED on	target outside the uncertain zone, red LED off	readiness for operation, red LED off	default value

Mechanical data

Weight [g]	151.5
Housing	rectangular
Sensing face	5 positions selectable
Mounting	flush mountable
Dimensions [mm]	40 x 40 x 54
Materials	PBT; PPE

Displays / operating elements

Display

switching status	1 x LED, yellow
function	1 x LED, red

Remarks

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A; Locking: locking, rotatable
