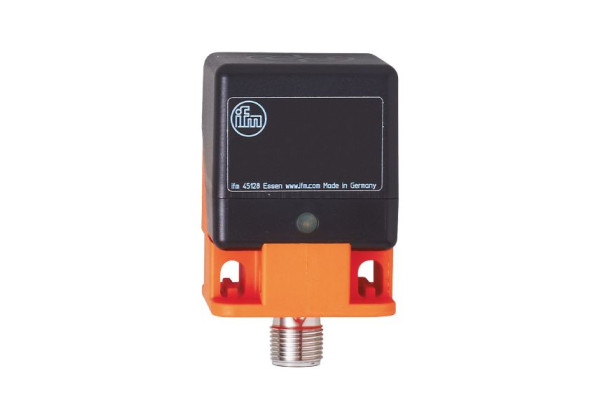

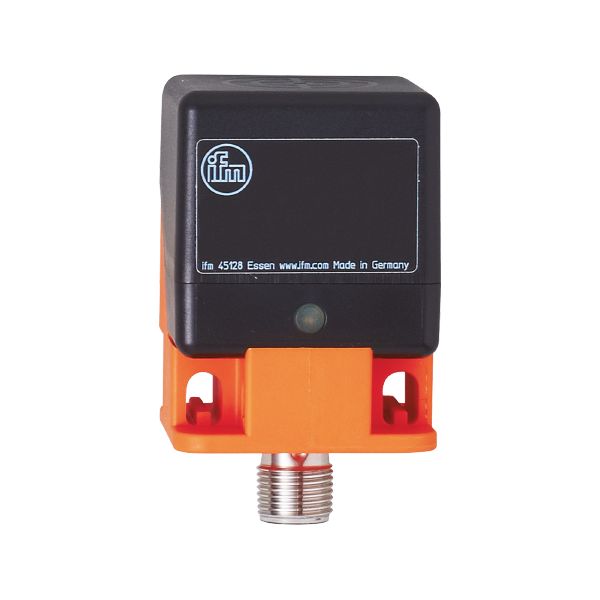

IM511A - efector100-IMC4040-CPKG/US/3D/3G
Brand: IFM Electronic
Code: IM511A
- For applications in hazardous areas
- Long sensing range for use in conveying
- Robust housing for use in harsh industrial environments
- Five positions of the sensing face selectable
- Complementary output function NO/NC
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | complementary |
| Sensing range [mm] | 40 |
| Housing | rectangular |
| Dimensions [mm] | 40 x 40 x 54 |
Application
| Special feature | Gold-plated contacts |
|---|
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | < 15 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | complementary |
| Max. voltage drop switching output DC [V] | 2.5 |
| Max. leakage current [mA] | 0.5 |
| Permanent current rating of switching output DC [mA] | 200 |
| Switching frequency DC [Hz] | 60 |
| Short-circuit proof | yes |
| Overload protection | yes |
Detection zone
| Sensing range [mm] | 40 |
|---|---|
| Real sensing range Sr [mm] | 40 ± 10 % |
| Operating distance [mm] | 0...32.4 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2 |
|---|---|
| Hysteresis [% of Sr] | 1...20 |
| Switch point drift [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature [°C] | -20...60 |
|---|---|
| Protection | IP 65; IP 67 |
Tests / approvals
| ATEX marking | | ||
|---|---|---|---|
| EMC |
| ||
| MTTF [years] | 1259 |
Mechanical data
| Weight [g] | 175 |
|---|---|
| Housing | rectangular |
| Mounting | non-flush mountable |
| Dimensions [mm] | 40 x 40 x 54 |
| Materials | PC; PA; TPE |
Displays / operating elements
| Display |
|
|---|
Remarks
| Remarks |
| ||
|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - plug
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — IM511A — 22.06.2023 —
