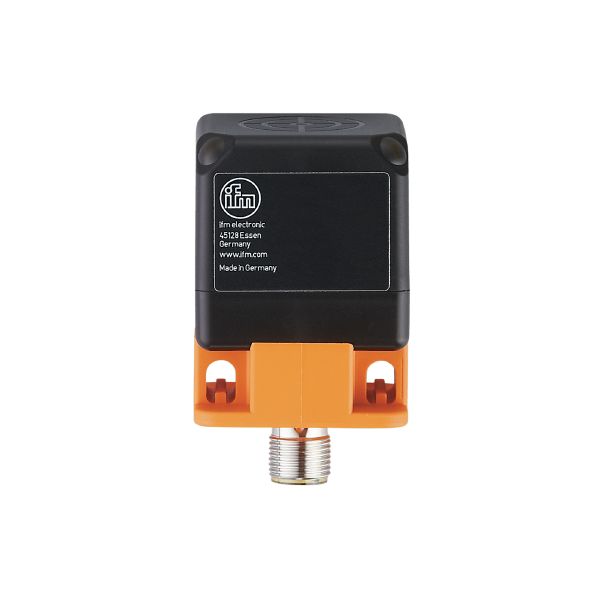

IM5139 - efector100-IMC3015A1PKG/US

Code: IM5139

Non-contact measurement of distances up to 15 mm
Precise linearised current output
Wide operating temperature range
High repeatability
LED display to check working range and operation

Product characteristics

Electrical design	PNP/NPN; (parameterisable)
Output function	normally open / normally closed; (parameterisable)
Communication interface	IO-Link
Housing	rectangular
Dimensions [mm]	40 x 40 x 54

Electrical data

Operating voltage [V]	15...30 DC
Current consumption [mA]	< 33
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP/NPN; (parameterisable)
Output function	normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	100
Analogue current output [mA]	4...20; (linear; gradient: 1,143 mA/mm; for frontal approach and for target made of mild steel: 45 x 45 x 1 mm)
Max. load [Ω]	500; (Ub <=18 V;; Max. load <=400 Ω)
Short-circuit protection	yes
Overload protection	yes

Detection zone

Measuring range [mm]	1...15
Switch point IO-Link [mm]	2.37...13.99

Accuracy / deviations

Correction factor

steel: 1 / stainless steel: 0.9 / brass: 0.4 / aluminium: 0.4 / copper: 0.3

Hysteresis [% of Sr]

3...15

Note on hysteresis

parameterisable

Linearity error of analogue output [%]

± 2; (of the final value of the measuring range)

Repeatability analogue output [%]

± 2; (of the final value of the measuring range)

Temperature coefficient [%/K vom MEW]

±0,15

Temperature drift

± 5 %; (of the final value of the measuring range)

Response times

Response time [ms]	< 20

Interfaces

Communication interface

IO-Link

Transmission type

COM2 (38,4 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9

Profiles

Smart Sensor: Identification and diagnosis; Multi-channel, two setpoint switching sensor, type 0 Generic Profiled Sensor; Teach Channel

SIO mode

yes

Required master port type

Min. process cycle time [ms]

3.2

IO-Link process data (cyclical)

function	bit length
process value	16
device status	4
binary switching information	2

IO-Link functions (acyclical)

switching cycles counter; switch-on cycle counter; operating hours counter; internal temperature; application specific tag

Supported DeviceIDs

Type of operation	DeviceID
Default	1205

Note

For further information please see the IODD PDF file under "Downloads"

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	10 V
EN 55011	class B

MTTF [years]

231

Embedded software included

yes

UL approval

Ta	-25...70 °C
Enclosure type	Type 1
power supply	Limited Voltage/Current
UL Approval no.	A025
File number UL	E174191

Mechanical data

Weight [g]	190
Housing	rectangular
Sensing face	5 positions selectable
Mounting	flush mountable
Dimensions [mm]	40 x 40 x 54
Materials	PA; brass white bronze coated

Displays / operating elements

Display

target in measuring range	1 x LED, yellow lights
target outside measuring range	1 x LED, yellow flashing
operation	LED, green

Remarks

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IM5139-02 — 13.04.2023 —
