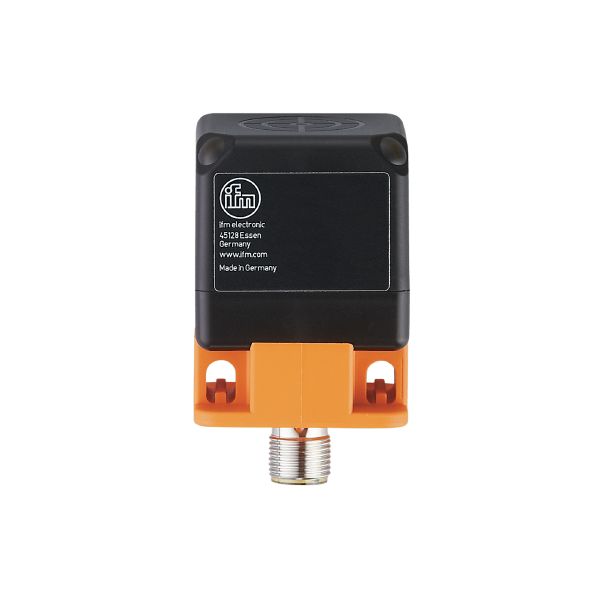

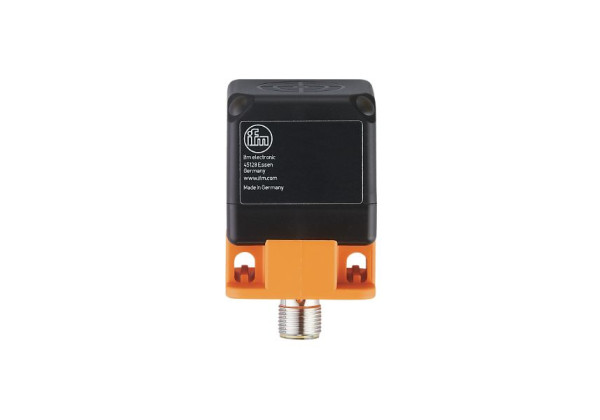

IM5173 - IMC3026-FRKG/IO/US-100

Code: IM5173

Long sensing range for use in conveying
Reliable transmission of the distance as linearised process value via IO-Link
Five positions of the sensing face selectable
LED display to check switching status and operation
Normally closed / normally open and PNP/NPN adjustable via IO-Link

Product characteristics

Electrical design	PNP/NPN; (parameterisable)
Output function	normally open / normally closed; (selectable)
Communication interface	IO-Link
Housing	rectangular
Dimensions [mm]	40 x 40 x 54

Electrical data

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 20
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP/NPN; (parameterisable)
Output function	normally open / normally closed; (selectable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	100
Short-circuit protection	yes
Overload protection	yes

Detection zone

Switch point IO-Link [mm]	4.9...24.3; (parameterisable)
Measuring range IO-Link [mm]	2.6...26

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.8 / brass: 0.4 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	3...15
Linearity error of analogue output [%]	± 2 %; (of the final value of the measuring range)
Repeatability analogue output [%]	± 1 %; (of the final value of the measuring range)
Temperature coefficient	± 0,2 %/K; (of the final value of the measuring range)

Interfaces

Communication interface

IO-Link

Transmission type

COM2 (38,4 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9 CDV

Profiles

Smart Sensor: Device Identification; Device Diagnosis; Device Teach Channel; Binary Data Channel; Process Data Variable

SIO mode

yes

Required master port type

Min. process cycle time [ms]

Supported DeviceIDs

Type of operation	DeviceID
Default	791

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	10 V
EN 55011	class B

MTTF [years]

629

Embedded software included

yes

UL approval

Ta	-25...70 °C
Enclosure type	Type 1
power supply	Limited Voltage/Current
UL Approval no.	A009
File number UL	E174191

Mechanical data

Weight [g]	151.5
Housing	rectangular
Sensing face	5 positions selectable
Mounting	non-flush mountable
Dimensions [mm]	40 x 40 x 54
Materials	PA

Displays / operating elements

Display

operation	LED, green
SIO mode
output stage supplied with current	LED, yellow lights
IO-Link mode
target in measuring range	LED, yellow lights

Remarks

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A; Moulded body: brass, white bronze coated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IM5173-02 — 13.04.2023 —
