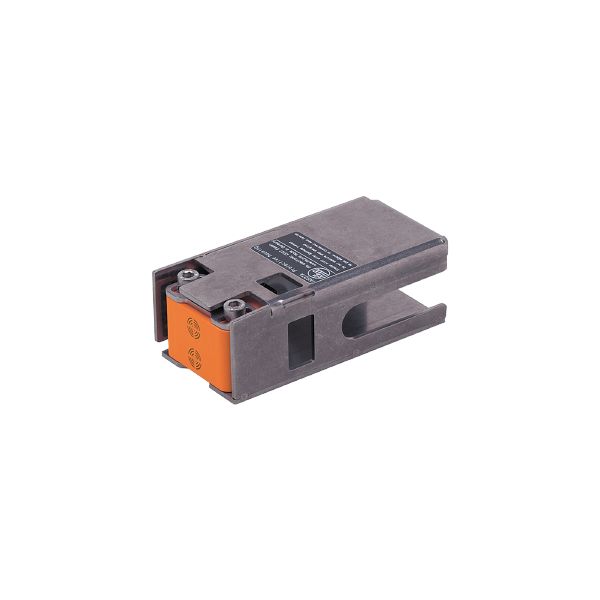

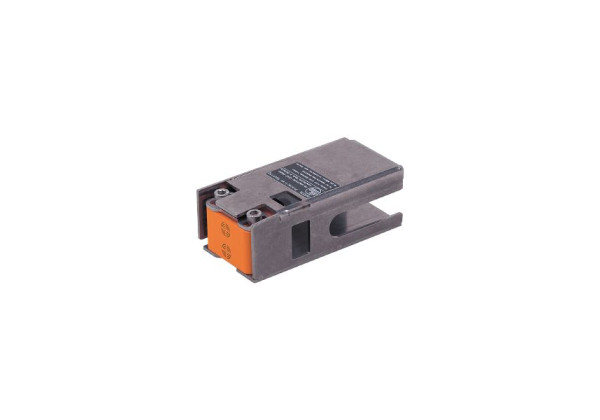

IN507A - efector180-IND3004DBPKG/US/3D/3G
Brand: IFM Electronic
Code: IN507A
- For applications in hazardous areas
- Robust housing with 4 joules shock test
- For monitoring valve positions
- For reliable position feedback on valve actuators
- Non-contact and self-cleaning system
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | 2 x normally open |
| Sensing range [mm] | 4 |
| Housing | rectangular |
| Dimensions [mm] | 40 x 26 x 47 |
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | < 15 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | 2 x normally open |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 100 |
| Short-time current rating of switching output [mA] | 100 |
| Switching frequency DC [Hz] | 1300 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Sensing range [mm] | 4 |
|---|---|
| Operating distance target puck [mm] | 1 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis [% of Sr] | 1...15 |
| Switch point drift [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature [°C] | -20...60 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| ATEX marking | | ||
|---|---|---|---|
| | |||
| Note on ATEX marking |
| ||
| EMC |
| ||
| MTTF [years] | 1064 |
Mechanical data
| Weight [g] | 341.5 |
|---|---|
| Housing | rectangular |
| Dimensions [mm] | 40 x 26 x 47 |
| Materials | housing: PBT; cover: PC; Impact protection housing: stainless steel |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connection | Connector: 1 x M12; coding: A; Moulded body: stainless steel |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — IN507A — 24.04.2023 —
