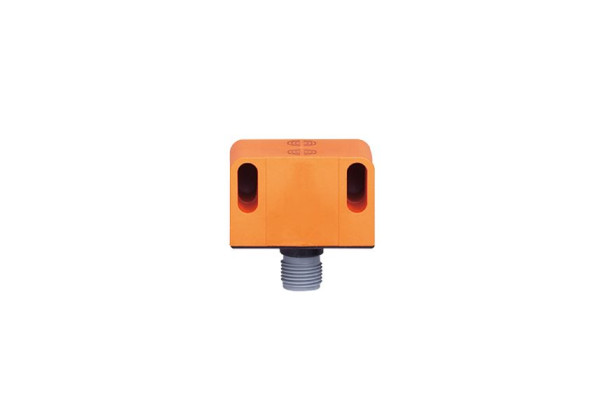

Induktiver Doppelsensor für Schwenkantriebe IN5416 IND3004DBPKG/US-100-KPV

Code: IN5416

For monitoring valve positions
For reliable position feedback on valve actuators
Non-contact and self-cleaning system
Quick and secure mounting with only three screws
High shock and vibration resistance

Product characteristics

Electrical design	PNP
Output function	2 x normally open
Sensing range [mm]	4
Housing	rectangular
Dimensions [mm]	40 x 26 x 26

Application

Special feature	Gold-plated contacts

Electrical data

Operating voltage [V]	10...36 DC
Rated insulation voltage [V]	250
Current consumption [mA]	< 15
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	2 x normally open
Max. voltage drop switching output DC [V]	2.5
Max. leakage current [mA]	0.5
Permanent current rating of switching output DC [mA]	250
Short-time current rating of switching output [mA]	250
Switching frequency DC [Hz]	1000
Short-circuit protection	yes
Overload protection	yes

Detection zone

Sensing range [mm]	4
Real sensing range Sr [mm]	4 ± 10 %
Operating distance [mm]	0...3.24

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC

EN 60947-5-2

Mechanical data

Weight [g]	40
Housing	rectangular
Mounting	non-flush mountable
Dimensions [mm]	40 x 26 x 26
Materials	housing: PBT; cover: PC
Tightening torque [Nm]	0.6...1.5; (Lock nut)

Displays / operating elements

Display

switching status

2 x LED, yellow

Remarks

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
