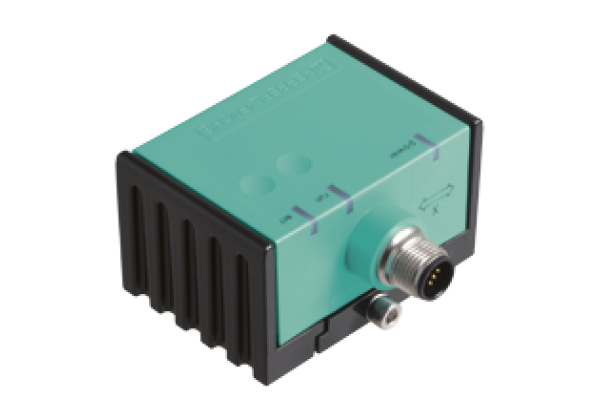

Inclination sensor INX360D-F99-B16-V15
Brand: Pepperl+Fuchs
Code: INX360D-F99-B16-V15
E1-Type approval, Measuring range 0... 360°, High shock resistance, Extended temperature range
-40 ... +85 °C, CANopen interface, Increased noise immunity 100 V/m
Datasheet excerpt: Technical data of INX360D-F99-B16-V15
| General specifications | ||
|---|---|---|
| Type | Inclination sensor, 1-axis | |
| Measurement range | 0... 360 ° | |
| Absolute accuracy | ≤ ± 0.5 ° | |
| Response delay | ≤ 20 ms | |
| Resolution | ≤ 0.1 ° | |
| Repeat accuracy | ≤ ± 0.1 ° | |
| Temperature influence | ≤ 0.027 °/K | |
| Functional safety related parameters | ||
| MTTFd | 300 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED, green | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| No-load supply current | ≤ 50 mA | |
| Time delay before availability | ≤ 2.5 s | |
| Interface | ||
| Interface type | CANopen | |
| Device profile | CiA410, Ver. 1.2 | |
| Data output code | binary code | |
| Transfer rate | 125 kBit/s , 250 kBit/s , 500 kBit/s , 1 MBit/s , programmable | |
| Node ID | 1... 127 , programmable | |
| Termination | external | |
| Cycle time | ≥ 20 ms | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Shock and impact resistance | 100 g according to DIN EN 60068-2-27 | |
| Standards | EN 60947-5-2:2007 IEC 60947-5-2:2007 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, Class 2 Power Source | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| E1 Type approval | 10R-04 | |
| Ambient conditions | ||
| Ambient temperature | -40... 85 °C (-40... 185 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Connection type | 5-pin, M12 x 1 connector | |
| Housing material | PA | |
| Degree of protection | IP68 / IP69K | |
| Mass | 240 g | |
| Factory settings | ||
| Node ID | 1 | |
| Transfer rate | 250 kBit/s | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27271101 |
| ECLASS 12.0 | 27271101 |
| ECLASS 11.0 | 27271101 |
| ECLASS 10.0.1 | 27271101 |
| ECLASS 9.0 | 27271190 |
| ECLASS 8.0 | 27270790 |
| ECLASS 5.1 | 27270790 |
| ETIM 9.0 | EC011640 |
| ETIM 8.0 | EC003965 |
| ETIM 7.0 | EC002544 |
| ETIM 6.0 | EC002544 |
| ETIM 5.0 | EC002544 |
| UNSPSC 12.1 | 41114624 |
