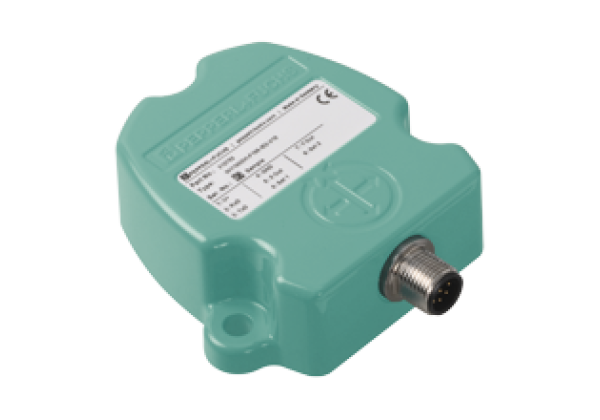

Inclination sensor INX360DH-F199-IE2-V19

Code: INX360DH-F199-IE2-V19

Sturdy housing, High accuracy of ≤ ± 0,15°, Analog output 4 mA ... 20 mA, 1-axis with 360° measuring range

Datasheet excerpt: Technical data of INX360DH-F199-IE2-V19

General specifications
Type		Inclination sensor, 1-axis
Time delay before availability		125 ms
Measurement range		0... 360 °
Absolute accuracy		≤ ± 0.15 °
Response delay		≤ 100 ms
Resolution		≤ 0.01 °
Temperature influence		≤ 0.004 °/K
Functional safety related parameters
MTTF_d		700 a at 40 °C
Mission Time (T_M)		20 a
Diagnostic Coverage (DC)		0 %
Electrical specifications
Operating voltage		10... 30 V DC
No-load supply current		≤ 65 mA at 10 V DC ≤ 60 mA at 24 V DC
Analog output
Output type		current output 4... 20 mA
Load resistor		270 Ω at 10 V DC
Compliance with standards and directives
Standard conformity
	Noise immunity	EN 61000-6-2
	Emitted interference	EN 61000-6-4
	Shock and impact resistance	DIN EN 60068-2-27, 100 g, 6 ms
	Vibration resistance	DIN EN 60068-2-6, 20 g, 10 ... 2000 Hz
Ambient conditions
Ambient temperature		-40... 85 °C (-40... 185 °F)
Storage temperature		-40... 85 °C (-40... 185 °F)
Mechanical specifications
Connection type		8-pin, M12 x 1 connector , A-coded
Housing material		aluminum, corrosion-resistant
Degree of protection		IP68 / IP69
Mass		approx. 200 g
