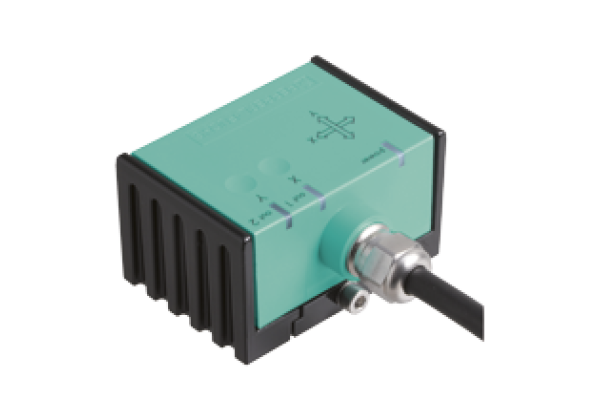

Inclination sensor INY030D-F99-2I2E2-5M
Brand: Pepperl+Fuchs
Code: INY030D-F99-2I2E2-5M
E1-Type approval, Measuring range -15°... +15°, Analog output 4 mA ... 20 mA, Fixed evaluation limits , High shock resistance, Increased noise immunity 100 V/m
Datasheet excerpt: Technical data of INY030D-F99-2I2E2-5M
| General specifications | ||
|---|---|---|
| Type | Inclination sensor, 2-axis | |
| Measurement range | -15... 15 ° | |
| Absolute accuracy | ≤ ± 0.2 ° | |
| Response delay | ≤ 25 ms | |
| Resolution | ≤ 0.01 ° | |
| Repeat accuracy | ≤ ± 0.02 ° | |
| Temperature influence | ≤ 0.004 °/K | |
| Functional safety related parameters | ||
| MTTFd | 304 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED, green | |
| Switching state | 2 yellow LEDs: Switching status (each output) | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| No-load supply current | ≤ 25 mA | |
| Time delay before availability | ≤ 200 ms | |
| Switching output | ||
| Output type | 2 switch outputs PNP, NO , reverse polarity protected , short-circuit protected | |
| Operating current | ≤ 100 mA | |
| Voltage drop | ≤ 3 V | |
| Analog output | ||
| Output type | 2 current outputs 4... 20 mA (one output for each axis) | |
| Load resistor | 0... 200 Ω at UB = 10... 18 V 0... 500 Ω at UB = 18... 30 V | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Shock and impact resistance | 100 g according to DIN EN 60068-2-27 | |
| Standards | EN 60947-5-2:2007 IEC 60947-5-2:2007 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, Class 2 Power Source | |
| E1 Type approval | 10R-04 | |
| Ambient conditions | ||
| Ambient temperature | -40... 85 °C (-40... 185 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Connection type | 5 m, PUR cable 7 x 0.5 mm2 | |
| Housing material | PA | |
| Degree of protection | IP68 / IP69K | |
| Mass | 240 g | |
| Factory settings | ||
| Analog output (X) | -15 °... 15 ° | |
| Analog output (Y) | -15 °... 15 ° | |
| Switching output (X) | -15 °... 15 ° | |
| Switching output (Y) | -15 °... 15 ° | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27271101 |
| ECLASS 12.0 | 27271101 |
| ECLASS 11.0 | 27271101 |
| ECLASS 10.0.1 | 27271101 |
| ECLASS 9.0 | 27271190 |
| ECLASS 8.0 | 27270790 |
| ECLASS 5.1 | 27270790 |
| ETIM 9.0 | EC011640 |
| ETIM 8.0 | EC003965 |
| ETIM 7.0 | EC002544 |
| ETIM 6.0 | EC002544 |
| ETIM 5.0 | EC002544 |
| UNSPSC 12.1 | 41114624 |
