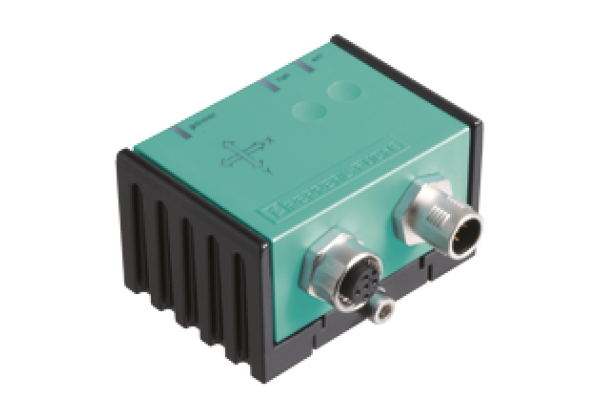

Inclination sensor INY030D-F99-B20-V15
Brand: Pepperl+Fuchs
Code: INY030D-F99-B20-V15
E1-Type approval, High shock resistance, Extended temperature range
-40 ... +85 °C, Measuring range -15°... +15°, CAN bus with SAE J1939 protocol
Datasheet excerpt: Technical data of INY030D-F99-B20-V15
| General specifications | ||
|---|---|---|
| Type | Inclination sensor, 2-axis | |
| Measurement range | -15... 15 ° | |
| Absolute accuracy | ≤ ± 0.2 ° | |
| Response delay | ≤ 25 ms | |
| Resolution | ≤ 0.01 ° | |
| Repeat accuracy | ≤ ± 0.02 ° | |
| Temperature influence | ≤ 0.004 °/K | |
| Functional safety related parameters | ||
| MTTFd | 650 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED, green | |
| Status indicator | LED, yellow | |
| Error indicator | LED, red | |
| Electrical specifications | ||
| Operating voltage | 5... 30 V DC | |
| No-load supply current | ≤ 100 mA | |
| Power consumption | ≤ 0.7 W | |
| Interface | ||
| Interface type | J1939 | |
| Data output code | binary code | |
| Transfer rate | 10... 1000 kBit/s , programmable | |
| Node ID | 0... 253 , programmable | |
| Termination | external | |
| Cycle time | programmable | |
| SLOT Range | -15... 15 ° | |
| SLOT Offset | 180 ° | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Shock and impact resistance | 100 g according to DIN EN 60068-2-27 | |
| Standards | EN 60947-5-2:2007 IEC 60947-5-2:2007 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, Class 2 Power Source | |
| E1 Type approval | 10R-04 | |
| Ambient conditions | ||
| Ambient temperature | -40... 85 °C (-40... 185 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Connection type | 5-pin, M12 x 1 connector 5-pin, M12 x 1 socket internal bridged | |
| Housing material | PA | |
| Degree of protection | IP68 / IP69K | |
| Mass | 240 g | |
| Factory settings | ||
| Node ID | 128 | |
| Transfer rate | 250 kBit/s | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27271101 |
| ECLASS 12.0 | 27271101 |
| ECLASS 11.0 | 27271101 |
| ECLASS 10.0.1 | 27271101 |
| ECLASS 9.0 | 27271190 |
| ECLASS 8.0 | 27270790 |
| ECLASS 5.1 | 27270790 |
| ETIM 9.0 | EC011640 |
| ETIM 8.0 | EC003965 |
| ETIM 7.0 | EC002544 |
| ETIM 6.0 | EC002544 |
| ETIM 5.0 | EC002544 |
| UNSPSC 12.1 | 41114624 |
