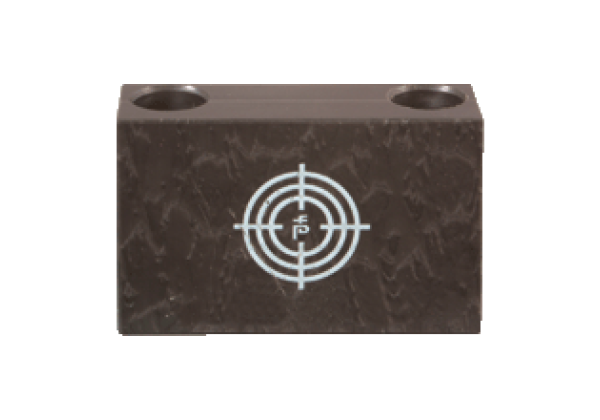

RFID Transponder IPC03-20CT
Brand: Pepperl+Fuchs
Code: IPC03-20CT
Data carrier
Datasheet excerpt: Technical data of IPC03-20CT
| Product Description |
|---|
| Data carrier |
| General specifications | ||
|---|---|---|
| Operating frequency | 125 kHz | |
| Transfer rate | 2 kBit/s | |
| Memory | ||
| Chip Type | EM4450 Titan (EM Microelectronic) | |
| EEPROM | 928 Bit | |
| Read cycles | unlimited | |
| Write cycles | > 100000 | |
| Data retention period | 10 years at 55 °C (131 °F) | |
| Standard conformity | ||
| RFID | ISO/IEC 18000-2 | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Storage temperature | -20... 85 °C (-4... 185 °F) | |
| Mechanical specifications | ||
| Housing length | 50.8 mm | |
| Housing width | 33 mm | |
| Housing height | 15.4 mm | |
| Degree of protection | IP68 / IP69K | |
| Material | ||
| Housing | Nylotron | |
| Encapsulation compound | Epoxy | |
| Installation | ||
| On metal | yes | |
| In air | yes | |
| Mass | 31 g | |
| Construction type | Rectangular type | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27280402 |
| ECLASS 12.0 | 27280402 |
| ECLASS 11.0 | 27280402 |
| ECLASS 10.0.1 | 27280402 |
| ECLASS 9.0 | 27280402 |
| ECLASS 8.0 | 27280401 |
| ECLASS 5.1 | 27280401 |
| ETIM 9.0 | EC002996 |
| ETIM 8.0 | EC002996 |
| ETIM 7.0 | EC002996 |
| ETIM 6.0 | EC002996 |
| ETIM 5.0 | EC002996 |
| UNSPSC 12.1 | 43211710 |
