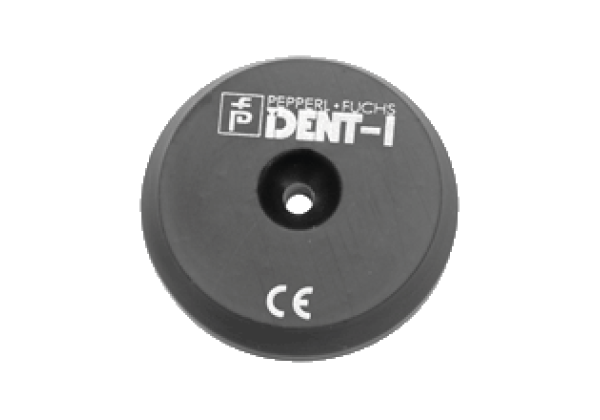

RFID Transponder IPC03-54
Brand: Pepperl+Fuchs
Code: IPC03-54
Data carrier
Datasheet excerpt: Technical data of IPC03-54
| Product Description |
|---|
| Data carrier |
| General specifications | ||
|---|---|---|
| Operating frequency | 125 kHz | |
| Transfer rate | 2 kBit/s | |
| Distance | distance tables, see introduction | |
| Memory | ||
| Chip Type | EM4450 Titan (EM Microelectronic) | |
| EEPROM | 928 Bit | |
| Read cycles | unlimited | |
| Write cycles | > 100000 | |
| Data retention period | 10 years at 55 °C (131 °F) | |
| Directive conformity | ||
| Radio equipment | ||
| Directive 2014/53/EU | EN 300330 | |
| RoHS | ||
| Directive 2011/65/EU (RoHS) | IEC/EN 63000 | |
| Standard conformity | ||
| Degree of protection | EN 60529 | |
| RFID | ISO/IEC 18000-2 | |
| Ambient conditions | ||
| Ambient temperature | -25... 85 °C (-13... 185 °F) | |
| Storage temperature | -25... 85 °C (-13... 185 °F) | |
| Mechanical specifications | ||
| Housing height | 15 mm | |
| Housing diameter | 54 mm | |
| Degree of protection | IP67 according to EN 60529 | |
| Material | ||
| Housing | Polyurethane (PUR) | |
| Installation | ||
| On metal | yes | |
| In air | yes | |
| Construction type | Cylindrical | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27280402 |
| ECLASS 12.0 | 27280402 |
| ECLASS 11.0 | 27280402 |
| ECLASS 10.0.1 | 27280402 |
| ECLASS 9.0 | 27280402 |
| ECLASS 8.0 | 27280401 |
| ECLASS 5.1 | 27280401 |
| ETIM 9.0 | EC002996 |
| ETIM 8.0 | EC002996 |
| ETIM 7.0 | EC002996 |
| ETIM 6.0 | EC002996 |
| ETIM 5.0 | EC002996 |
| UNSPSC 12.1 | 43211710 |
