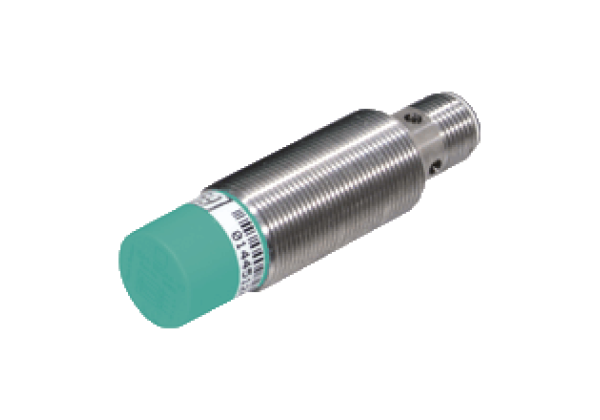

RFID read/write device IPH-18GM-V1
Brand: Pepperl+Fuchs
Code: IPH-18GM-V1
LF RFID read/write device for IDENTControl
Datasheet excerpt: Technical data of IPH-18GM-V1
| Product Description |
|---|
| LF RFID read/write device for IDENTControl |
| General specifications | ||
|---|---|---|
| Operating frequency | 125 kHz | |
| Transfer rate | 2 kBit/s | |
| Sensing range | ||
| Read distance | 1... 50 mm | |
| Write distance | 0... 40 mm | |
| Width | max. 40 mm | |
| Operating distance | maximum: 50 mm | |
| UL File Number | E87056 | |
| MTBF | 350 a (Operation at +40 °C) | |
| Indicators/operating means | ||
| LED green/yellow | Multihole-LED: green: power on green flashing: read/write attempt performed yellow: data carrier detected | |
| Electrical specifications | ||
| Power consumption | ≤ 1.2 W | |
| Supply | from the IDENTControl | |
| Directive conformity | ||
| Radio equipment | ||
| Directive 2014/53/EU | EN 301489-1 EN 301489-3 EN 300330 EN 62368-1 EN 50364 | |
| RoHS | ||
| Directive 2011/65/EU (RoHS) | IEC/EN 63000 | |
| Standard conformity | ||
| Degree of protection | EN 60529 | |
| RFID | ISO/IEC 18000-2 | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Housing length | 66 mm | |
| Housing diameter | 18 mm | |
| Degree of protection | IP67 | |
| Connection | connector M12 x 1 | |
| Material | ||
| Housing | PBT/stainless steel | |
| Encapsulation compound | Fermadur | |
| Installation | non-flush | |
| Distance between two heads | Multiplex on: ≥ 30 mm Multiplex off: ≥ 180 mm | |
| Mass | approx. 40 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27280401 |
| ECLASS 12.0 | 27280401 |
| ECLASS 11.0 | 27280401 |
| ECLASS 10.0.1 | 27280401 |
| ECLASS 9.0 | 27280401 |
| ECLASS 8.0 | 27280401 |
| ECLASS 5.1 | 27280401 |
| ETIM 9.0 | EC002998 |
| ETIM 8.0 | EC002998 |
| ETIM 7.0 | EC002998 |
| ETIM 6.0 | EC002998 |
| ETIM 5.0 | EC002998 |
| UNSPSC 12.1 | 43211710 |
