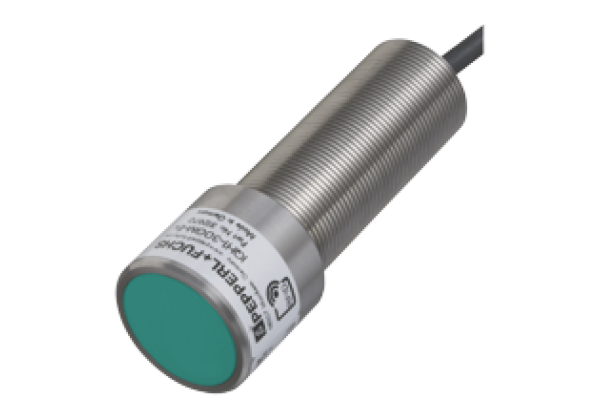

RFID read/write device hazardous area IPH-30GM-Ex
Brand: Pepperl+Fuchs
Code: IPH-30GM-Ex
LF RFID read/write device for IDENTControl, for hazardous areas
Datasheet excerpt: Technical data of IPH-30GM-Ex
| Product Description |
|---|
| LF RFID read/write device for IDENTControl, for hazardous areas |
| General specifications | ||
|---|---|---|
| Operating frequency | 125 kHz | |
| Transfer rate | 2 kBit/s | |
| Operating distance | maximum: 22 mm | |
| MTBF | 350 a (Operation at +40 °C) | |
| Electrical specifications | ||
| Power consumption | ≤ 1.2 W | |
| Supply | from the IDENTControl | |
| Directive conformity | ||
| Radio equipment | ||
| Directive 2014/53/EU | EN 301489-1 EN 301489-3 EN 300330 EN 62368-1 EN 50364 | |
| RoHS | ||
| Directive 2011/65/EU (RoHS) | IEC/EN 63000 | |
| Standard conformity | ||
| Explosion protection | EN IEC 60079-0 EN 60079-18/A1 | |
| Degree of protection | EN 60529 | |
| RFID | ISO/IEC 18000-2 | |
| Approvals and certificates | ||
| ATEX approval | ||
| Marking |  II 2G Ex mb IIC T4 Gb II 2D Ex mb IIIC T130°C Db | |
| Equipment protection level Gb | IBExU 21ATEX1039 X | |
| Equipment protection level Db | IBExU 21ATEX1039 X | |
| Ambient conditions | ||
| Ambient temperature | -20... 70 °C (-4... 158 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Housing length | 105 mm ± 1 mm | |
| Housing diameter | 38 mm | |
| Degree of protection | IP68 | |
| Connection | 15 m connecting cable included with delivery Connection e.g. with terminal boxes Series GL5 | |
| Material | ||
| Housing | Stainless steel 1.4305 / AISI 303 | |
| Installation | flush | |
| Distance between two heads | Multiplex on: ≥ 155 mm Multiplex off: ≥ 350 mm | |
| Mass | approx. 2000 g | |
| General information | ||
| Use in the hazardous area | see instruction manuals | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27280401 |
| ECLASS 12.0 | 27280401 |
| ECLASS 11.0 | 27280401 |
| ECLASS 10.0.1 | 27280401 |
| ECLASS 9.0 | 27280401 |
| ECLASS 8.0 | 27280401 |
| ECLASS 5.1 | 27280401 |
| ETIM 9.0 | EC002998 |
| ETIM 8.0 | EC002998 |
| ETIM 7.0 | EC002998 |
| ETIM 6.0 | EC002998 |
| ETIM 5.0 | EC002998 |
| UNSPSC 12.1 | 43211710 |
