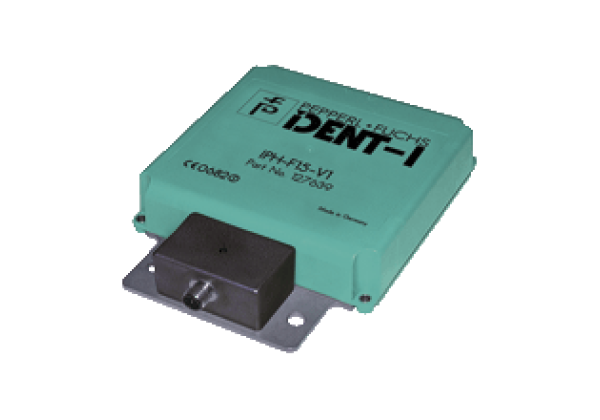

RFID read/write device IPH-F15-V1

Code: IPH-F15-V1

LF RFID read/write device for IDENTControl

Datasheet excerpt: Technical data of IPH-F15-V1

Product Description
LF RFID read/write device for IDENTControl

General specifications
Operating frequency		125 kHz
Transfer rate		2 kBit/s
Sensing range
	Read distance	2... 155 mm
	Write distance	2... 140 mm
	Width	145 mm
Operating distance		maximum: 140 mm
UL File Number		E87056 only from low voltage, limited energy source (SELV or PELV) or listed Class 2 source
Indicators/operating means
LED green/yellow		green: power on green flashing: read/write attempt performed yellow: data carrier detected
Electrical specifications
Power consumption		≤ 1.2 W
Supply		from the IDENTControl
Directive conformity
Radio equipment
	Directive 2014/53/EU	EN 301489-1 EN 301489-3 EN 300330 EN 62368-1 EN 50364
RoHS
	Directive 2011/65/EU (RoHS)	IEC/EN 63000
Standard conformity
Degree of protection		EN 60529
RFID		ISO/IEC 18000-2
Ambient conditions
Ambient temperature		-25... 70 °C (-13... 158 °F)
Storage temperature		-40... 85 °C (-40... 185 °F)
Mechanical specifications
Housing length		190 mm
Housing width		140 mm
Housing height		40.5 mm
Degree of protection		IP67
Connection		connector M12 x 1
Material
	Housing	PBT/stainless steel/aluminum
	Encapsulation compound	Fermadur
Installation
	Distance between two heads	Multiplex on: ≥ 180 mm Multiplex off: ≥ 1100 mm
Mass		approx. 1200 g
