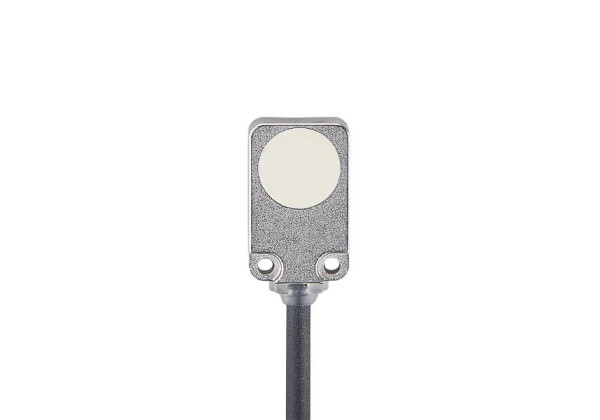

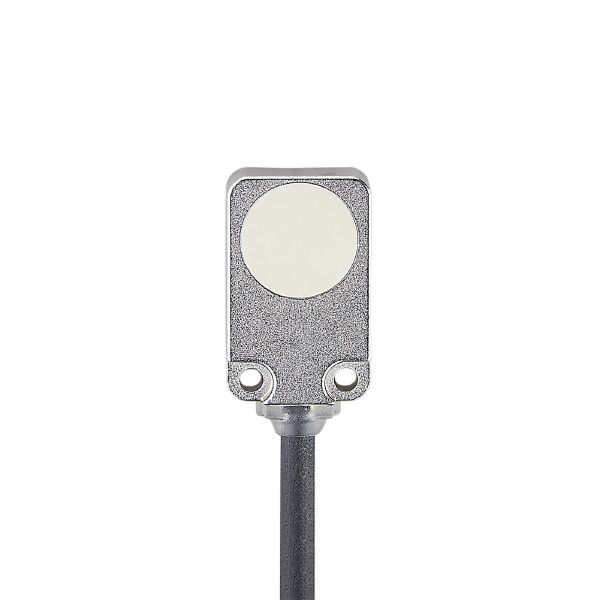

IQ2011 Inductive sensor IQ23008BAPKG/K1/2M/PUR

Code: IQ2011

Correction factor 1: Constant sensing range on all metals
Very high switching frequency
Long sensing range for high uptime
Particularly space-saving design
Wide operating temperature range

Product characteristics

Electrical design	PNP
Output function	normally closed
Sensing range [mm]	8
Housing	rectangular
Dimensions [mm]	20 x 8 x 32

Application

Special feature	Drag chain suitability; Increased sensing range

Electrical data

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 20
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally closed
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	2000
Short-circuit protection	yes
Overload protection	yes

Detection zone

Sensing range [mm]	8
Real sensing range Sr [mm]	8 ± 10 %
Operating distance [mm]	0...6.48
Increased sensing range	yes

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 1 / brass: 1 / aluminium: 1 / copper: 1
Hysteresis [% of Sr]	3...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 65; IP 66; IP 67; IP 68

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	10 V
EN 55011	class B

Vibration resistance

EN 60068-2-6 Fc

20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes

Shock resistance

EN 60068-2-27 Ea

100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes

Continuous shock resistance

EN 60068-2-27

40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes

Fast temperature change

EN 60068-2-14 Na

TA = -40°C; TB = 85°C; t1 = 30 min; t2 = < 10 s 50 cycles

MTTF [years]

1084

UL approval

Ta	-40...60 °C
Enclosure type	Type 1
power supply	Limited Voltage/Current
UL Approval no.	A021
File number UL	E174191

Mechanical data

Weight [g]

78.6

Housing

rectangular

Mounting

flush mountable

Dimensions [mm]

20 x 8 x 32

Materials

diecast zinc special coating; sensing face: LCP natural; LED window: TPU; potting: PUR

Drag chain suitability

yes

Drag chain suitability

bending radius for flexible use	min. 10 x cable diameter
bending cycles	> 5 Mio.

Displays / operating elements

Display

Display operation	1 x LED, green
switching status	1 x LED, yellow

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PUR, Ø 4.9 mm; 3 x 0.34 mm²
