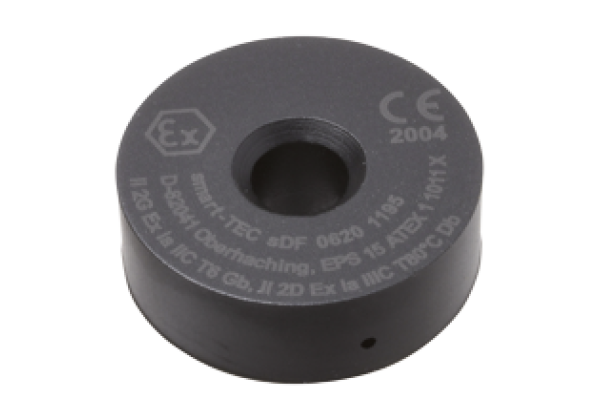

RFID Transponder IQC21-30-EX smart-DOME 50pcs

Code: IQC21-30-EX smart-DOME 50pcs

Data carrier for hazardous area

Datasheet excerpt: Technical data of IQC21-30-EX smart-DOME 50pcs

Product Description
Data carrier for hazardous area

General specifications
Marking		II 2G Ex ia IIC T6 Gb II 2D Ex ia IIIC T80°C Db
Operating frequency		13.56 MHz
Transfer rate		26 kBit/s
Memory
Chip Type		I-CODE SLI (NXP)
EEPROM		896 Bit
UID		64 Bit
Memory organization		4 bytes/block
Read cycles		unlimited
Write cycles		> 100000
Data retention period		10 years at 55 °C (131 °F)
Directive conformity
Explosion protection
	Directive 2014/34/EU	EN IEC 60079-0 EN IEC 60079-11
Radio equipment
	Directive 2014/53/EU	EN 301489-1 EN 301489-3 EN 300330 EN 62368-1 EN 50364
RoHS
	Directive 2011/65/EU (RoHS)	IEC/EN 63000
Standard conformity
Degree of protection		EN 60529
RFID		ISO/IEC 15693-1 ISO/IEC 15693-2 ISO/IEC 15693-3 ISO/IEC 18000-3
Ambient conditions
Ambient temperature		-25... 70 °C (-13... 158 °F)
Storage temperature		-40... 110 °C (-40... 230 °F)
Mechanical specifications
Housing height		10 mm
Housing diameter		30 mm
Degree of protection		IP67
Material
	Housing	Polyurethane (PUR)
Installation
	On metal	yes
	In air	yes
Construction type		Cylindrical
Note		Packaging unit, 50-piece
