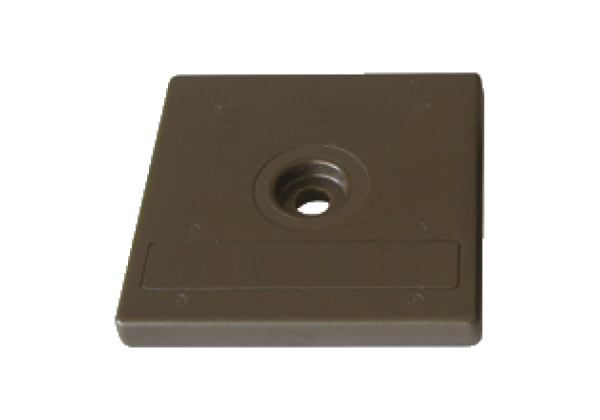

RFID Transponder IQC21-50F-T10
Brand: Pepperl+Fuchs
Code: IQC21-50F-T10
Data carrier
Datasheet excerpt: Technical data of IQC21-50F-T10
| Product Description |
|---|
| Data carrier |
| General specifications | ||
|---|---|---|
| Operating frequency | 13.56 MHz | |
| Transfer rate | 26 kBit/s | |
| Memory | ||
| Chip Type | I-CODE SLI (NXP) | |
| EEPROM | 896 Bit | |
| UID | 64 Bit | |
| Memory organization | 4 bytes/block | |
| Read cycles | unlimited | |
| Write cycles | > 100000 | |
| Data retention period | 10 years at 55 °C (131 °F) | |
| Directive conformity | ||
| Radio equipment | ||
| Directive 2014/53/EU | EN 300330 | |
| RoHS | ||
| Directive 2011/65/EU (RoHS) | IEC/EN 63000 | |
| Standard conformity | ||
| Degree of protection | EN 60529 | |
| RFID | ISO/IEC 15693-1 ISO/IEC 15693-2 ISO/IEC 15693-3 ISO/IEC 18000-3 | |
| Ambient conditions | ||
| Ambient temperature | -40... 85 °C (-40... 185 °F) | |
| Storage temperature | -40... 220 °C (-40... 428 °F) 220 °C (493 K) for 1000 hours or 1500 cycles of 30 min | |
| Climatic conditions | 100 % non-condensing | |
| Mechanical specifications | ||
| Housing length | 51.5 mm | |
| Housing width | 51.5 mm | |
| Housing height | 6.4 mm | |
| Degree of protection | IP68 | |
| Material | ||
| Housing | PPS | |
| Installation | ||
| In air | yes | |
| Mass | 25 g | |
| Construction type | Rectangular type | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27280402 |
| ECLASS 12.0 | 27280402 |
| ECLASS 11.0 | 27280402 |
| ECLASS 10.0.1 | 27280402 |
| ECLASS 9.0 | 27280402 |
| ECLASS 8.0 | 27280401 |
| ECLASS 5.1 | 27280401 |
| ETIM 9.0 | EC002996 |
| ETIM 8.0 | EC002996 |
| ETIM 7.0 | EC002996 |
| ETIM 6.0 | EC002996 |
| ETIM 5.0 | EC002996 |
| UNSPSC 12.1 | 43211710 |
