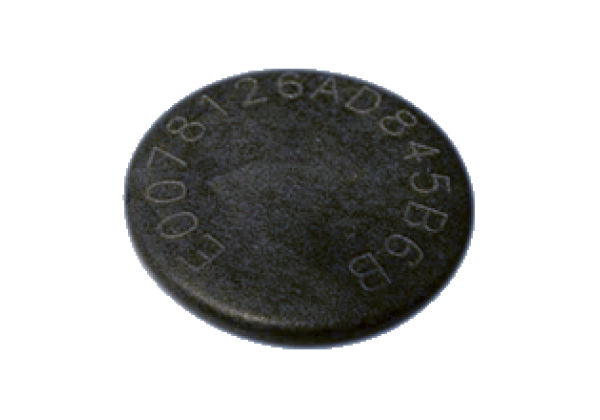

RFID Transponder IQC22-22-T9

Code: IQC22-22-T9

Data carrier

Datasheet excerpt: Technical data of IQC22-22-T9

Product Description
Data carrier

General specifications
Operating frequency		13.56 MHz
Transfer rate		26 kBit/s
Memory
Chip Type		Tag-it HF-I Plus (Texas Instruments)
EEPROM		2 kBit
UID		64 Bit
Memory organization		4 bytes/block
Read cycles		unlimited
Write cycles		> 100000
Data retention period		10 years at 25 °C (77 °F)
Directive conformity
Radio equipment
	Directive 2014/53/EU	EN 300330
RoHS
	Directive 2011/65/EU (RoHS)	IEC/EN 63000
Standard conformity
Degree of protection		EN 60529
RFID		ISO/IEC 15693-1 ISO/IEC 15693-2 ISO/IEC 15693-3 ISO/IEC 18000-3
Ambient conditions
Ambient temperature		-25... 90 °C (-13... 194 °F)
Storage temperature		-25... 120 °C (-13... 248 °F) 160 °C (433 K) for 50 hours 220 °C (493 K) for 30 seconds
Climatic conditions		Isostatic water pressure: 45 bar for 10 hours
Shock and impact resistance		Oscillation (sinus): 10 g, 10 - 2000 Hz in accordance with EN 60068-2-6 Shock (semi-sinus): 100 g, 6 ms in accordance with EN 60068-2-27
Mechanical specifications
Housing height		3 mm
Housing diameter		22 mm
Degree of protection		IP68
Material
	Housing	PPS
Installation
	In air	yes
Mass		1.6 g ± 0.3 g
Construction type		Cylindrical
