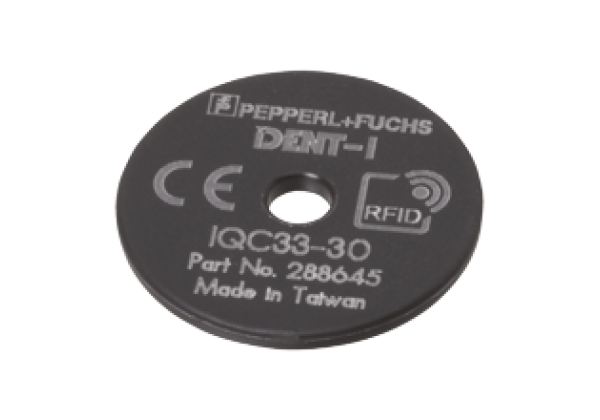

RFID Transponder IQC33-30 25pcs
Brand: Pepperl+Fuchs
Code: IQC33-30 25pcs
Data carrier
Datasheet excerpt: Technical data of IQC33-30 25pcs
| Product Description |
|---|
| Data carrier |
| General specifications | ||
|---|---|---|
| Operating frequency | 13.56 MHz | |
| Transfer rate | 26 kBit/s | |
| Memory | ||
| Chip Type | FRAM MB89R118 (Fujitsu) | |
| FRAM | 16 kBit | |
| UID | 64 Bit | |
| Memory organization | 8 bytes/block | |
| Read cycles | unlimited | |
| Write cycles | unlimited | |
| Data retention period | 10 years | |
| Directive conformity | ||
| Radio equipment | ||
| Directive 2014/53/EU | EN 300330 | |
| RoHS | ||
| Directive 2011/65/EU (RoHS) | IEC/EN 63000 | |
| Standard conformity | ||
| Degree of protection | EN 60529 | |
| RFID | ISO/IEC 15693-1 ISO/IEC 15693-2 ISO/IEC 15693-3 ISO/IEC 18000-3 | |
| Ambient conditions | ||
| Ambient temperature | -40... 90 °C (-40... 194 °F) | |
| Storage temperature | -40... 120 °C (-40... 248 °F) 120 °C (248 °F) for 72 hours | |
| Mechanical specifications | ||
| Housing height | 2.5 mm | |
| Housing diameter | 30 mm | |
| Degree of protection | IP68 | |
| Material | ||
| Housing | PA 6 | |
| Installation | ||
| In air | yes | |
| Mass | 3 g | |
| Construction type | Cylindrical | |
| Note | Packaging unit, 25-piece | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27280402 |
| ECLASS 12.0 | 27280402 |
| ECLASS 11.0 | 27280402 |
| ECLASS 10.0.1 | 27280402 |
| ECLASS 9.0 | 27280402 |
| ECLASS 8.0 | 27280401 |
| ECLASS 5.1 | 27280401 |
| ETIM 9.0 | EC002996 |
| ETIM 8.0 | EC002996 |
| ETIM 7.0 | EC002996 |
| ETIM 6.0 | EC002996 |
| ETIM 5.0 | EC002996 |
| UNSPSC 12.1 | 43211710 |
