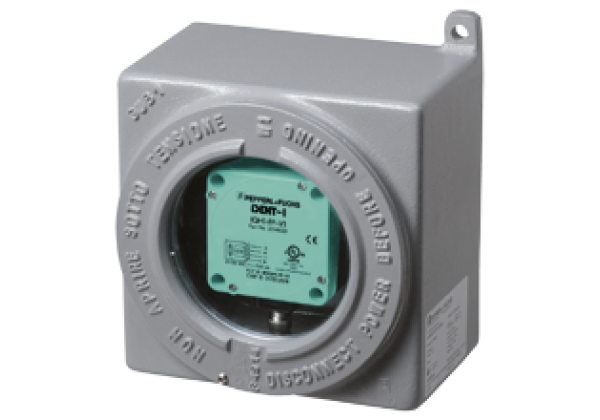

RFID read/write device hazardous area IQH1-FP-V1-Ex GUBW1
Brand: Pepperl+Fuchs
Code: IQH1-FP-V1-Ex GUBW1
HF RFID read/write device for hazardous areas, ISO 15693, for IDENTControl
Datasheet excerpt: Technical data of IQH1-FP-V1-Ex GUBW1
| Product Description |
|---|
| HF RFID read/write device for hazardous areas, ISO 15693, for IDENTControl |
| General specifications | ||
|---|---|---|
| Operating frequency | 13.56 MHz | |
| Transfer rate | 26 kBit/s | |
| Operating distance | typ. 40 mm | |
| Indicators/operating means | ||
| LED green/yellow | green: power on green flashing: read/write attempt performed yellow: data carrier detected | |
| Electrical specifications | ||
| Power consumption | ≤ 1.3 W | |
| Supply | from the IDENTControl | |
| Directive conformity | ||
| Radio equipment | ||
| Directive 2014/53/EU | EN 301489-1 EN 301489-3 EN 300330 EN 62368-1 EN 50364 | |
| RoHS | ||
| Directive 2011/65/EU (RoHS) | IEC/EN 63000 | |
| Standard conformity | ||
| Degree of protection | EN 60529 | |
| RFID | ISO/IEC 15693-2 ISO/IEC 15693-3 ISO/IEC 18000-3 | |
| Approvals and certificates | ||
| IECEx approval | IECEx INE 14.0042X | |
| ATEX approval | INERIS 14 ATEX 0035X Device type: GUBW1.D.CP-IQH1-FP-V1 Device number: 70117532 | |
| Marking |  II 2 GDEx db IIC T6 Gb Ex tb IIIC T85°C Db | |
| Ambient conditions | ||
| Ambient temperature | -25... 55 °C (-13... 131 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Housing length | 279 mm | |
| Housing width | 202 mm | |
| Housing height | 134 mm | |
| Degree of protection | IP66 | |
| Connection | Terminal block with screw connection Max. clamping range 0.13 mm²... 2.5 mm² M20 barrier gland for unarmored cables, clamping range 3 mm... 8.5 mm | |
| Material | ||
| Housing | Seawater-resistant aluminum | |
| Installation | ||
| Distance between two heads | Multiplex on: ≥ 155 mm Multiplex off: ≥ 350 mm | |
| Mass | approx. 6900 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27280401 |
| ECLASS 12.0 | 27280401 |
| ECLASS 11.0 | 27280401 |
| ECLASS 10.0.1 | 27280401 |
| ECLASS 9.0 | 27280401 |
| ECLASS 8.0 | 27280401 |
| ECLASS 5.1 | 27280401 |
| ETIM 9.0 | EC002998 |
| ETIM 8.0 | EC002998 |
| ETIM 7.0 | EC002998 |
| ETIM 6.0 | EC002998 |
| ETIM 5.0 | EC002998 |
| UNSPSC 12.1 | 43211710 |
