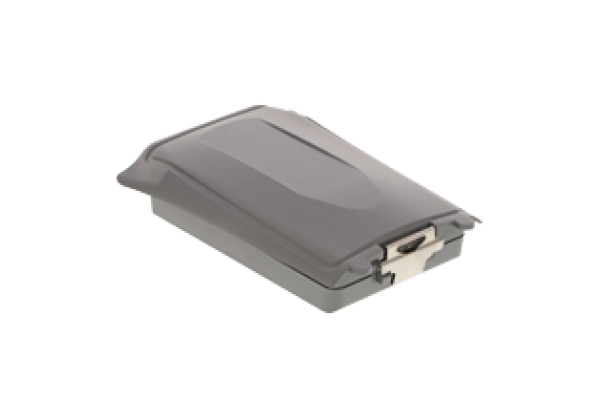

Lithium ion battery IQZ-HH27-BAT1
Brand: Pepperl+Fuchs
Code: IQZ-HH27-BAT1
Lithium ion battery for IQT1-HH27 and IPT-HH27
Datasheet excerpt: Technical data of IQZ-HH27-BAT1
| Product Description |
|---|
| Lithium ion battery for IQT1-HH27 and IPT-HH27 |
| Electrical specifications | ||
|---|---|---|
| Battery type | Lithium ion battery: 7.2 V; 3400 mAh | |
| Approvals and certificates | ||
| CE conformity | CE | |
| Ambient conditions | ||
| Ambient temperature | 0... 45 °C (32... 113 °F) | |
| Storage temperature | -20... 70 °C (-4... 158 °F) | |
| Mechanical specifications | ||
| Mass | 137 g | |
| Dimensions | 102.4 mm x 70.9 mm x 23.4 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27050403 |
| ECLASS 12.0 | 27050403 |
| ECLASS 11.0 | 27050403 |
| ECLASS 10.0.1 | 27050403 |
| ECLASS 9.0 | 27050403 |
| ECLASS 8.0 | 27050403 |
| ECLASS 5.1 | 27059090 |
| ETIM 8.0 | EC000357 |
| ETIM 7.0 | EC000357 |
| ETIM 6.0 | EC000357 |
| ETIM 5.0 | EC001199 |
| UNSPSC 12.1 | 26111701 |
