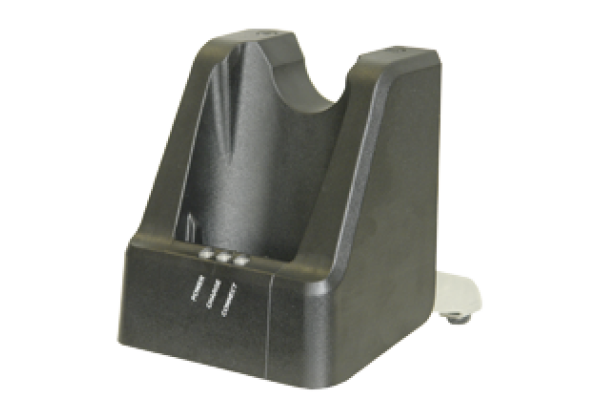

Docking station IQZ-HH27-CHARGER1
Brand: Pepperl+Fuchs
Code: IQZ-HH27-CHARGER1
Docking station for IQT1-HH27 and IPT-HH27
Datasheet excerpt: Technical data of IQZ-HH27-CHARGER1
| Product Description |
|---|
| Docking station for IQT1-HH27 and IPT-HH27 |
| Indicators/operating means | ||
|---|---|---|
| LED red/green | Power: green/off Charge: green/red Connect: green/off | |
| Input | ||
| Input voltage | 100 V AC... 240 V AC 47... 63 Hz | |
| Input current | max. 1 A | |
| Output | ||
| Output rated operating current | 2.6 A | |
| Output voltage | 15 V DC | |
| Approvals and certificates | ||
| CE conformity | CE | |
| Ambient conditions | ||
| Ambient temperature | 0... 45 °C (32... 113 °F) | |
| Storage temperature | -20... 70 °C (-4... 158 °F) | |
| Mechanical specifications | ||
| Connection | USB (type A and B) and LAN (RJ45) | |
| Mass | 785 g | |
| Dimensions | 122 mm x 125 mm x 127 mm | |
| Note | No option to charge a spare battery available Power supply (EU, US) and USB cable included in the scope of delivery | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27280492 |
| ECLASS 12.0 | 27280492 |
| ECLASS 11.0 | 27280492 |
| ECLASS 10.0.1 | 27280492 |
| ECLASS 9.0 | 27280492 |
| ECLASS 8.0 | 27280490 |
| ECLASS 5.1 | 27279290 |
| ETIM 9.0 | EC002997 |
| ETIM 8.0 | EC002997 |
| ETIM 7.0 | EC002997 |
| ETIM 6.0 | EC002997 |
| ETIM 5.0 | EC002997 |
| UNSPSC 12.1 | 43211710 |
