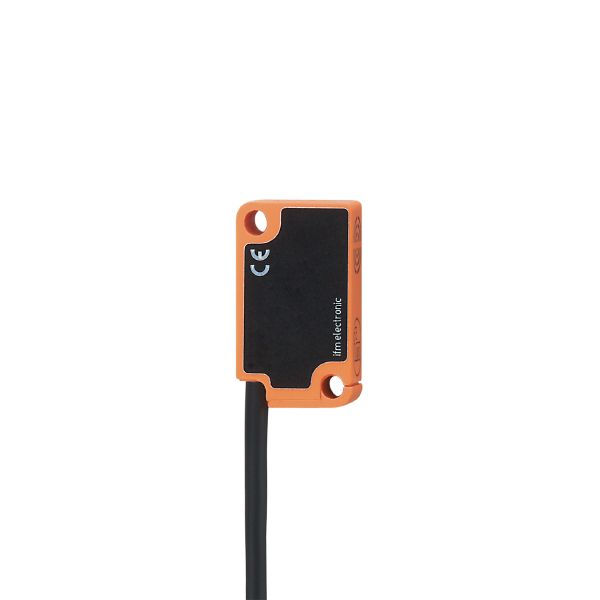

IS0008 Inductive sensor IS-2002-BROA/12"K
Brand: IFM Electronic
Code: IS0008
- With combined AC/DC output stage
- Two-wire technology
- Particularly space-saving rectangular housing
- For use where space is restricted
- Wide operating temperature range
Product characteristics
| Output function | normally closed |
|---|---|
| Sensing range [mm] | 2 |
| Housing | rectangular |
| Dimensions [mm] | 28 x 10 x 16 |
Electrical data
| Frequency AC [Hz] | 45...65 |
|---|---|
| Operating voltage [V] | 20...140 AC / 10...140 DC |
| Protection class | II |
| Reverse polarity protection | no |
Outputs
| Output function | normally closed |
|---|---|
| Max. voltage drop switching output DC [V] | 5 |
| Max. voltage drop switching output AC [V] | 5 |
| Minimum load current [mA] | 5 |
| Max. leakage current [mA] | 0.8 |
| Permanent current rating of switching output AC [mA] | 200 |
| Permanent current rating of switching output DC [mA] | 200 |
| Short-time current rating of switching output [mA] | 900; (20 ms / 0,5 Hz) |
| Switching frequency AC [Hz] | 25 |
| Switching frequency DC [Hz] | 25 |
| Short-circuit protection | no |
| Overload protection | no |
Detection zone
| Sensing range [mm] | 2 |
|---|---|
| Real sensing range Sr [mm] | 2 ± 10 % |
| Operating distance [mm] | 0...1.6 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.9 / brass: 0.8 / aluminium: 0.5 / copper: 0.46 |
|---|---|
| Hysteresis [% of Sr] | 1...15 |
| Switch point drift [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature [°C] | -20...80 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
| ||||
|---|---|---|---|---|---|
| MTTF [years] | 1698 |
Mechanical data
| Weight [g] | 14.9 |
|---|---|
| Housing | rectangular |
| Mounting | flush mountable |
| Dimensions [mm] | 28 x 10 x 16 |
| Materials | PBT |
| Tightening torque [Nm] | < 0.5; (with washer) |
Displays / operating elements
| Display |
|
|---|
Electrical connection
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting |
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Cable: 0.3 m, PVC; 2 x 0.25 mm² |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IS0008-00 — 13.04.2023 —
