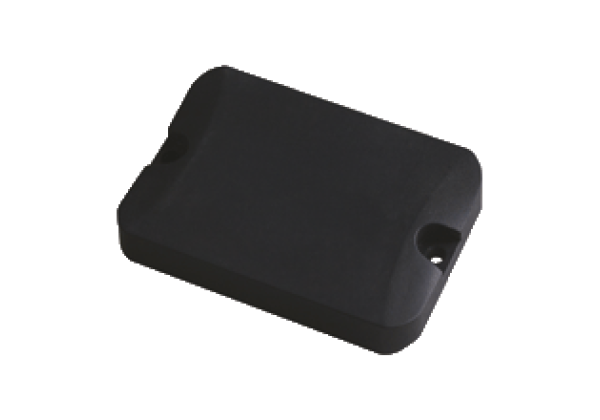

RFID Transponder IUC76-F157-T19-M-FR2
Brand: Pepperl+Fuchs
Code: IUC76-F157-T19-M-FR2
Data carrier for autoclave applications
Datasheet excerpt: Technical data of IUC76-F157-T19-M-FR2
| Product Description |
|---|
| Data carrier for autoclave applications |
| General specifications | ||
|---|---|---|
| Operating frequency | 902... 928 MHz | |
| Polarization | linear | |
| Memory | ||
| Chip Type | Higgs-3 (Alien) | |
| Memory Bank 00 (Reserved) | 64 Bit | |
| Memory Bank 01 (EPC/UII) | 96... 480 Bit | |
| Memory Bank 10 (TID) | 96 Bit | |
| Memory Bank 11 (User memory) | 512 Bit | |
| Read cycles | unlimited | |
| Write cycles | > 100000 | |
| Data retention period | 50 years @ 77 °C (170.6 °F) | |
| Standard conformity | ||
| Degree of protection | EN 60529 | |
| RFID | ISO/IEC 18000-63 | |
| Ambient conditions | ||
| Ambient temperature | -40... 85 °C (-40... 185 °F) | |
| Storage temperature | -40... 150 °C (-40... 302 °F) | |
| Mechanical specifications | ||
| Housing length | 51 mm | |
| Housing width | 36.3 mm | |
| Housing height | 7.5 mm | |
| Degree of protection | IP69K | |
| Material | ||
| Housing | PA 6 | |
| Installation | ||
| On metal | yes | |
| Mass | 28 g | |
| Construction type | Rectangular type | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27280402 |
| ECLASS 12.0 | 27280402 |
| ECLASS 11.0 | 27280402 |
| ECLASS 10.0.1 | 27280402 |
| ECLASS 9.0 | 27280402 |
| ECLASS 8.0 | 27280401 |
| ECLASS 5.1 | 27280401 |
| ETIM 9.0 | EC002996 |
| ETIM 8.0 | EC002996 |
| ETIM 7.0 | EC002996 |
| ETIM 6.0 | EC002996 |
| ETIM 5.0 | EC002996 |
| UNSPSC 12.1 | 43211710 |
