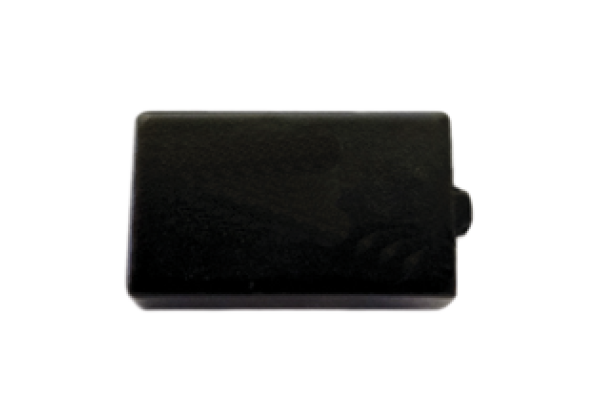

RFID Transponder IUC76-F205-M-FR1 10pcs
Brand: Pepperl+Fuchs
Code: IUC76-F205-M-FR1 10pcs
Data carrier
Datasheet excerpt: Technical data of IUC76-F205-M-FR1 10pcs
| Product Description |
|---|
| Data carrier |
| General specifications | ||
|---|---|---|
| Operating frequency | 865... 868 MHz | |
| Polarization | linear | |
| Memory | ||
| Chip Type | Higgs-3 (Alien) | |
| Memory Bank 00 (Reserved) | 64 Bit | |
| Memory Bank 01 (EPC/UII) | 96... 480 Bit | |
| Memory Bank 10 (TID) | 96 Bit | |
| Memory Bank 11 (User memory) | 512 Bit | |
| Read cycles | unlimited | |
| Write cycles | > 100000 | |
| Data retention period | 50 years | |
| Directive conformity | ||
| Radio equipment | ||
| Directive 2014/53/EU | EN 302208 | |
| RoHS | ||
| Directive 2011/65/EU (RoHS) | IEC/EN 63000 | |
| Standard conformity | ||
| Degree of protection | EN 60529 | |
| RFID | ISO/IEC 18000-63 | |
| Ambient conditions | ||
| Ambient temperature | -40... 85 °C (-40... 185 °F) | |
| Storage temperature | -40... 150 °C (-40... 302 °F) 200 °C (392 °F) for 3 hours 220 °C (428 °F) for 30 minutes | |
| Mechanical specifications | ||
| Housing length | 12.8 mm | |
| Housing width | 7.08 mm | |
| Housing height | 3.08 mm | |
| Degree of protection | IP68 | |
| Material | ||
| Housing | Ceramic | |
| Installation | ||
| On metal | yes | |
| Mass | 1.4 g | |
| Construction type | Rectangular type | |
| Note | Packaging unit, 10-piece | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27280402 |
| ECLASS 12.0 | 27280402 |
| ECLASS 11.0 | 27280402 |
| ECLASS 10.0.1 | 27280402 |
| ECLASS 9.0 | 27280402 |
| ECLASS 8.0 | 27280401 |
| ECLASS 5.1 | 27280401 |
| ETIM 9.0 | EC002996 |
| ETIM 8.0 | EC002996 |
| ETIM 7.0 | EC002996 |
| ETIM 6.0 | EC002996 |
| ETIM 5.0 | EC002996 |
| UNSPSC 12.1 | 43211710 |
