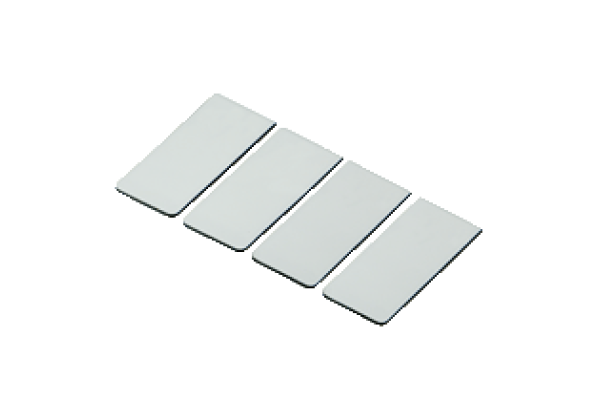

RFID Transponder IUC82-23L50-M-FR2 500pcs
Brand: Pepperl+Fuchs
Code: IUC82-23L50-M-FR2 500pcs
Data carrier
Datasheet excerpt: Technical data of IUC82-23L50-M-FR2 500pcs
| Product Description |
|---|
| Data carrier |
| General specifications | ||
|---|---|---|
| Operating frequency | 902... 928 MHz | |
| Polarization | linear | |
| Memory | ||
| Chip Type | UCODE 7xm-2k (NXP) | |
| Memory Bank 00 (Reserved) | 64 Bit | |
| Memory Bank 01 (EPC/UII) | 448 Bit | |
| Memory Bank 10 (TID) | 96 Bit | |
| Memory Bank 11 (User memory) | 2048 Bit | |
| Read cycles | unlimited | |
| Write cycles | > 100000 | |
| Data retention period | 50 years | |
| Standard conformity | ||
| Degree of protection | EN 60529 | |
| RFID | ISO/IEC 18000-63 | |
| Ambient conditions | ||
| Ambient temperature | -30... 85 °C (-22... 185 °F) | |
| Storage temperature | -30... 85 °C (-22... 185 °F) | |
| Mechanical specifications | ||
| Housing length | 50 mm | |
| Housing width | 22.5 mm | |
| Housing height | 1.5 mm | |
| Degree of protection | IP67 | |
| Installation | Adhesive | |
| On metal | yes | |
| Mass | 1 g | |
| Construction type | Label | |
| Note | Packaging unit, 500 pcs. on a roll | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27280402 |
| ECLASS 12.0 | 27280402 |
| ECLASS 11.0 | 27280402 |
| ECLASS 10.0.1 | 27280402 |
| ECLASS 9.0 | 27280402 |
| ECLASS 8.0 | 27280401 |
| ECLASS 5.1 | 27280401 |
| ETIM 9.0 | EC002996 |
| ETIM 8.0 | EC002996 |
| ETIM 7.0 | EC002996 |
| ETIM 6.0 | EC002996 |
| ETIM 5.0 | EC002996 |
| UNSPSC 12.1 | 43211710 |
