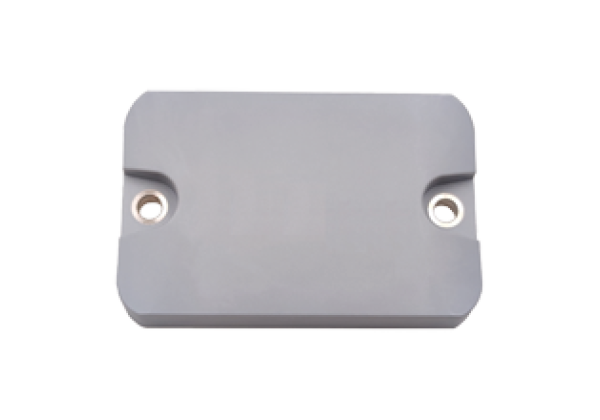

RFID Transponder IUC87-F257-T18-M-FR2 10 pcs
Brand: Pepperl+Fuchs
Code: IUC87-F257-T18-M-FR2 10 pcs
Tag for paint shop applications
Datasheet excerpt: Technical data of IUC87-F257-T18-M-FR2 10 pcs
| Product Description |
|---|
| Tag for paint shop applications |
| General specifications | ||
|---|---|---|
| Operating frequency | 902... 928 MHz | |
| Polarization | linear | |
| Memory | ||
| Chip Type | Higgs-9 (Alien) | |
| Memory Bank 00 (Reserved) | 64 Bit | |
| Memory Bank 01 (EPC/UII) | 96... 496 Bit | |
| Memory Bank 10 (TID) | 48 Bit | |
| Memory Bank 11 (User memory) | 688 Bit | |
| Read cycles | unlimited | |
| Write cycles | 200000 | |
| Data retention period | 50 years | |
| Directive conformity | ||
| Radio equipment | ||
| Directive 2014/53/EU | EN 302208 | |
| RoHS | ||
| Directive 2011/65/EU (RoHS) | IEC/EN 63000 | |
| Standard conformity | ||
| Degree of protection | EN 60529 | |
| RFID | ISO/IEC 18000-63 | |
| Ambient conditions | ||
| Ambient temperature | -40... 85 °C (-40... 185 °F) | |
| Storage temperature | -40... 250 °C (-40... 482 °F) 250 °C for 500 hours | |
| Shock and impact resistance | 1 m (3 ft) on concrete | |
| Mechanical specifications | ||
| Housing length | 55 mm | |
| Housing width | 36.2 mm | |
| Housing height | 7.5 mm | |
| Degree of protection | IP68 | |
| Material | ||
| Housing | Polymer , 316L Stainless steel , silicone free | |
| Installation | ||
| On metal | yes | |
| Mass | 26 g | |
| Construction type | Rectangular type | |
| Note | Packaging unit, 10-piece | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27280402 |
| ECLASS 12.0 | 27280402 |
| ECLASS 11.0 | 27280402 |
| ECLASS 10.0.1 | 27280402 |
| ECLASS 9.0 | 27280402 |
| ECLASS 8.0 | 27280401 |
| ECLASS 5.1 | 27280401 |
| ETIM 9.0 | EC002996 |
| ETIM 8.0 | EC002996 |
| ETIM 7.0 | EC002996 |
| ETIM 6.0 | EC002996 |
| ETIM 5.0 | EC002996 |
| UNSPSC 12.1 | 43211710 |
