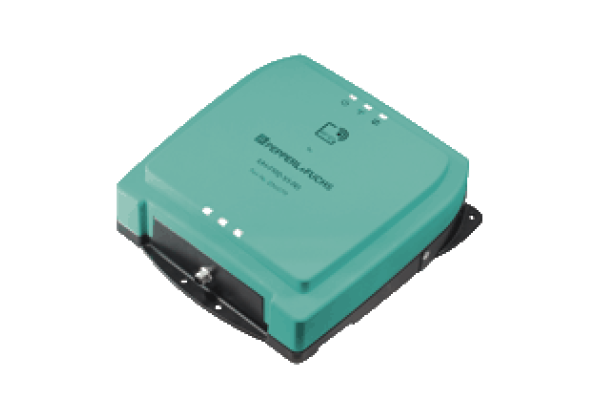

RFID read/write device IUH-F192-V1-FR1

RFID read/write device IUH-F192-V1-FR1

Code: IUH-F192-V1-FR1

UHF RFID read/write device for IDENTControl, Europe, Middle East and Afric

Datasheet excerpt: Technical data of  IUH-F192-V1-FR1

Product Description
UHF RFID read/write device for IDENTControl, Europe, Middle East and Afric
General specifications
Operating frequency865 … 868 MHz: EU, Turkey
Transmission licenses for other countries on request
Emitted power10 ... 2000 mW ERP (ETSI 302208) adjustable
Operating distancetyp. 4 m
MTBF64 a (Operation at +40 °C)
Indicators/operating means
LED greenPower on
LED yellowRead/write operation successful
LED blueTransmission mode
Electrical specifications
Power consumption≤ 10 W
Supplyfrom the IDENTControl
Directive conformity
Radio equipment
Directive 2014/53/EUEN 301489-1
EN 301489-3
EN 302208
EN 62368-1
EN 62311
EN 50364
RoHS
Directive 2011/65/EU (RoHS)IEC/EN 63000
Standard conformity
Degree of protectionEN 60529
RFIDISO/IEC 18000-63
Ambient conditions
Ambient temperature-25... 70 °C (-13... 158 °F)
Storage temperature-40... 85 °C (-40... 185 °F)
Mechanical specifications
Housing length268 mm
Housing width270 mm
Housing height81 mm
Degree of protectionIP67
Connectionconnector M12 x 1
Material
HousingPA 6
Basediecast aluminum
Massapprox. 3000 g

Classifications

SystemClasscode
ECLASS 13.027280401
ECLASS 12.027280401
ECLASS 11.027280401
ECLASS 10.0.127280401
ECLASS 9.027280401
ECLASS 8.027280401
ECLASS 5.127280401
ETIM 9.0EC002998
ETIM 8.0EC002998
ETIM 7.0EC002998
ETIM 6.0EC002998
ETIM 5.0EC002998
UNSPSC 12.143211710
