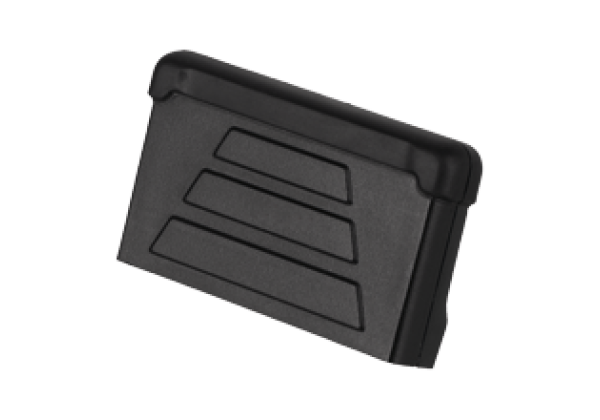

RFID read/write device IUH-HH50-FR1-01
Brand: Pepperl+Fuchs
Code: IUH-HH50-FR1-01
RFID read/write device for handheld, UHF, Europe
Datasheet excerpt: Technical data of IUH-HH50-FR1-01
| Product Description |
|---|
| RFID read/write device for handheld, UHF, Europe |
| General specifications | ||
|---|---|---|
| Operating frequency | 865 … 868 MHz: EU, Turkey Transmission licenses for other countries on request | |
| Emitted power | 5... 260 mW ERP adjustable | |
| Electrical specifications | ||
| Supply | via handheld reader | |
| Directive conformity | ||
| Radio equipment | ||
| Directive 2014/53/EU | EN 301489-1 EN 301489-3 EN 302208 EN 62368-1 EN 62311 EN 55032 | |
| RoHS | ||
| Directive 2011/65/EU (RoHS) | IEC/EN 63000 | |
| Standard conformity | ||
| Degree of protection | EN 60529 | |
| RFID | ISO/IEC 18000-63 | |
| Approvals and certificates | ||
| CE conformity | CE | |
| Ambient conditions | ||
| Ambient temperature | -20... 50 °C (-4... 122 °F) | |
| Storage temperature | -20... 60 °C (-4... 140 °F) | |
| Mechanical specifications | ||
| Housing length | 52 mm | |
| Housing width | 85 mm | |
| Housing height | 27 mm | |
| Degree of protection | IP54 | |
| Material | ||
| Housing | Plastic ABS/PC | |
| Mass | approx. 58 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27280401 |
| ECLASS 12.0 | 27280401 |
| ECLASS 11.0 | 27280401 |
| ECLASS 10.0.1 | 27280401 |
| ECLASS 9.0 | 27280401 |
| ECLASS 8.0 | 27280401 |
| ECLASS 5.1 | 27280401 |
| ETIM 9.0 | EC002998 |
| ETIM 8.0 | EC002998 |
| ETIM 7.0 | EC002998 |
| ETIM 6.0 | EC002998 |
| ETIM 5.0 | EC002998 |
| UNSPSC 12.1 | 43211710 |
