Coaxial Cable IUK-SMA-10M-LL240F-FRNC-TNC
Brand: Pepperl+Fuchs
Code: IUK-SMA-10M-LL240F-FRNC-TNC

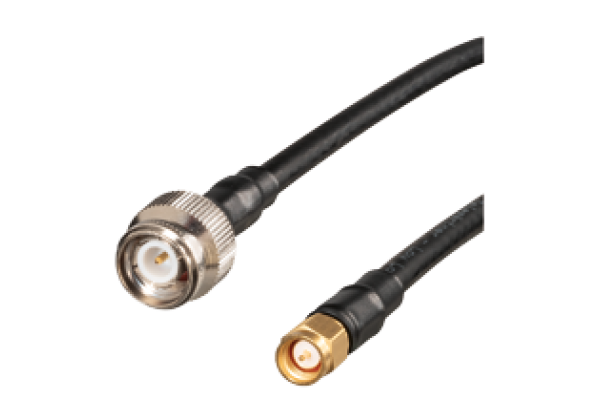

Adapter cable SMA plug straight to TNC plug straight, FRNC coaxial cable black, UV resistant
Datasheet excerpt: Technical data of IUK-SMA-10M-LL240F-FRNC-TNC
| Product Description |
|---|
| Adapter cable SMA plug straight to TNC plug straight, FRNC coaxial cable black, UV resistant |
| General specifications | ||
|---|---|---|
| Connector 1 | ||
| Construction type | SMA connector 1/4-36 UNS-2B | |
| Style | straight | |
| Locking | screw connection | |
| Connector 2 | ||
| Construction type | TNC connector 7/16-28 UNEF | |
| Style | straight | |
| Locking | screw connection | |
| Electrical specifications | ||
| Impedance | 50 Ω ± 2 Ω | |
| Signal attenuation | 29.1 dB/100 m @ 900 MHz | |
| Conformity | ||
| Plug connection | SMA connector : IEC 60169-15 TNC connector : IEC 60169-17 | |
| Flammability | IEC 60332-1-2 | |
| Ambient conditions | ||
| Operating temperature | -40... 70 °C (-40... 158 °F) | |
| Mechanical specifications | ||
| Connector 1 | ||
| Tightening torque | 0.79... 1.13 Nm | |
| Tool installation | hexagon nut SW = 8 mm | |
| Mating cycles | min. 500 | |
| Connector 2 | ||
| Tightening torque | 0.46... 0.69 Nm | |
| Tool installation | straight knurling | |
| Mating cycles | min. 500 | |
| Cable | ||
| Sheath diameter | 5.5 mm | |
| Bending radius | ≥ 44 mm , moving ≥ 22 mm , fixed | |
| Sheath color | black (similar to RAL 7021) | |
| Conductor construction | inner conductor copper, stranded wire ∅ 1.44 mm outer conductor aluminium foil tinned copper braiding ∅ 4.2 mm | |
| Core construction | coaxial | |
| Length | 10 m | |
| Material | ||
| Connector 1 | ||
| Screw connection | Zinc diecast, nickel-plated | |
| Body | Zinc diecast, nickel-plated | |
| Seal | silicone | |
| Contact surface | gold plated (Au) | |
| Connector 2 | ||
| Screw connection | Zinc diecast, nickel-plated | |
| Body | Zinc diecast, nickel-plated | |
| Seal | silicone | |
| Contact surface | gold plated (Au) | |
| Cable | ||
| Sheathing | FRNC | |
| Core insulation | PE | |
| UV resistance | yes | |
| Flammability | flame retardant | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27280492 |
| ECLASS 12.0 | 27280492 |
| ECLASS 11.0 | 27280492 |
| ECLASS 10.0.1 | 27280492 |
| ECLASS 9.0 | 27280492 |
| ECLASS 8.0 | 27280490 |
| ECLASS 5.1 | 27279290 |
| ETIM 9.0 | EC002997 |
| ETIM 8.0 | EC002997 |
| ETIM 7.0 | EC002997 |
| ETIM 6.0 | EC002997 |
| ETIM 5.0 | EC002997 |
| UNSPSC 12.1 | 43211710 |
