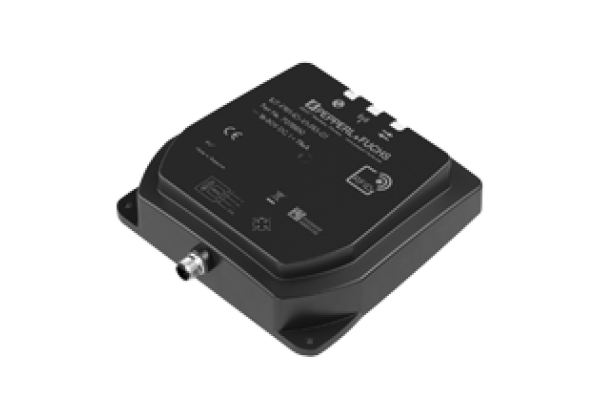

RFID read/write device IUT-F191-IO-V1-FR1-04
Brand: Pepperl+Fuchs
Code: IUT-F191-IO-V1-FR1-04
UHF RFID read/write device with IO-Link, India
Datasheet excerpt: Technical data of IUT-F191-IO-V1-FR1-04
| Product Description |
|---|
| UHF RFID read/write device with IO-Link, India |
| General specifications | ||
|---|---|---|
| Operating frequency | 865 MHz … 867 MHz: India Transmission licenses for other countries on request | |
| Emitted power | 3 … 100 mW ERP adjustable | |
| Operating distance | typ. 1 m | |
| MTBF | 127 a (Operation at +40 °C) | |
| Indicators/operating means | ||
| LED green/red | Solid green: Ready for operation, no IO-Link communication Flashing green (1 Hz): IO-Link operation | |
| LED yellow | Read/write operation successful | |
| LED blue | Transmission mode | |
| Electrical specifications | ||
| Operating voltage | 18... 30 V DC (IO-Link) | |
| Current consumption | ≤ 90 mA ( at 24 V DC ) | |
| Interface | ||
| Interface type | IO-Link | |
| IO-Link revision | 1.1 | |
| Device profile | Identification and Diagnosis - I&D | |
| Process data | Input 32 Byte Output 32 Byte | |
| Vendor ID | 1 (0x0001) | |
| Device ID | 4194820 (0x400204) | |
| Data transfer rate | COM3 (230.4 kbits/s) | |
| Min. cycle time | 4 ms | |
| SIO mode support | no | |
| Compatible master port type | Class A Class B | |
| Standard conformity | ||
| Degree of protection | EN 60529 | |
| Communication interface | IEC 61131-9 / IO-Link V1.1.3 | |
| RFID | ISO/IEC 18000-63 | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) (Operation with nontransmission periods) -25... 60 °C (-13... 140 °F) (Continuous transmission mode) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Housing length | 165 mm | |
| Housing width | 165 mm | |
| Housing height | 47 mm | |
| Degree of protection | IP67 | |
| Connection | connector M12 x 1 | |
| Material | ||
| Housing | PA 6.6 | |
| Base | Aluminum | |
| Mass | 700 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27280401 |
| ECLASS 12.0 | 27280401 |
| ECLASS 11.0 | 27280401 |
| ECLASS 10.0.1 | 27280401 |
| ECLASS 9.0 | 27280401 |
| ECLASS 8.0 | 27280401 |
| ECLASS 5.1 | 27280401 |
| ETIM 9.0 | EC002998 |
| ETIM 8.0 | EC002998 |
| ETIM 7.0 | EC002998 |
| ETIM 6.0 | EC002998 |
| ETIM 5.0 | EC002998 |
| UNSPSC 12.1 | 43211710 |
