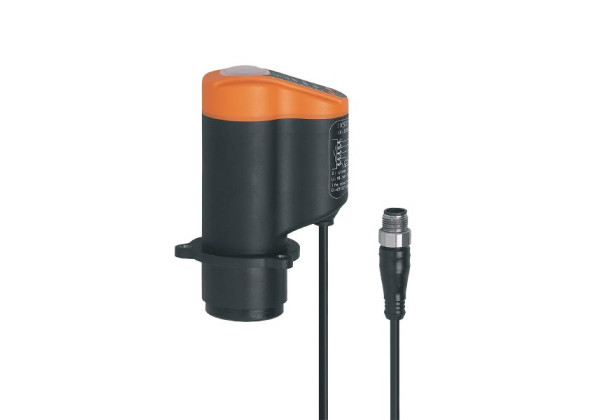

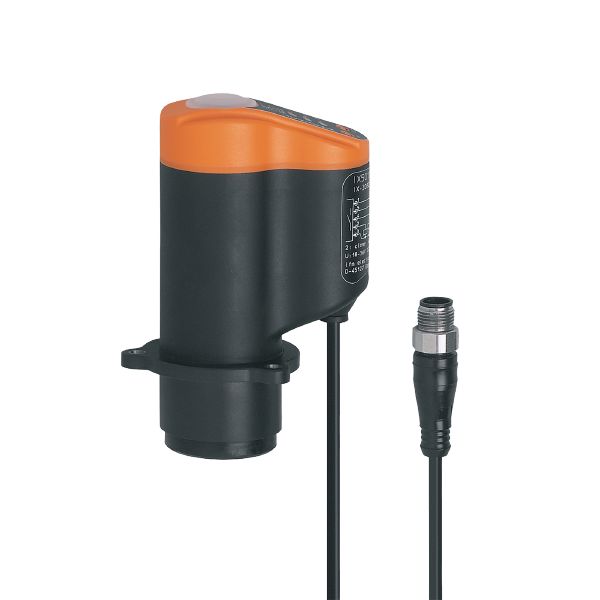

IX5010 - efector180-IX-3080-BPKG/3LED/0,3M/US

Code: IX5010

Position feedback for single and double seat valve and for diaphragm valves
Freely selectable switching outputs: valve open / closed, seat lift
Replaces three binary pulse pick-ups
Resolution of 0.2 mm across the entire measuring range
Programming of valve positions with pushbuttons

Product characteristics

Electrical design	PNP
Output function	3 x normally open
Dimensions [mm]	65 x 52 x 110

Application

Application	position feedback for seat valves and diaphragm valves; absolute distance measurement; monitoring of the valve seal

Electrical data

Operating voltage [V]	18...36 DC
Current consumption [mA]	42; (24 V)
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	2000

Outputs

Electrical design	PNP
Output function	3 x normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Measuring range [mm]

0...80

Max. target speed [m/s]

Resolution of valve stroke [mm]

0.2

Target

	cylindrical disc
-	Ø 24 mm ±0,05 mm
-	minimum height 10 mm
-	flat surface
-	stainless steel to DIN17440, material number 316S12.

Software / programming

Parameter setting options	3 switch points to be freely defined within the measuring range

Operating conditions

Ambient temperature [°C]

-25...85

Note on ambient temperature

for firmly laid cable

Protection

IP 65; IP 67; (only in conjunction with an installation in the valve head that provides sufficient protection against mechanical damage of the sensor)

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV CD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV coupling clamp
EN 61000-4-6 HF conducted	3 V

MTTF [years]

298

Mechanical data

Weight [g]	217.5
Type of mounting	3-hole flange
Dimensions [mm]	65 x 52 x 110
Materials	PA; TPE; PP; LCP

Displays / operating elements

Display

switching status	1 x LED, green open
switching status	1 x LED, yellow seat
switching status	1 x LED, red close

Accessories

Items supplied

screws: 3

Remarks

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Cable: 0.3 m, PVC; 5 x 0.14 mm²
Connection	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IX5010-00 — 13.04.2023 —
