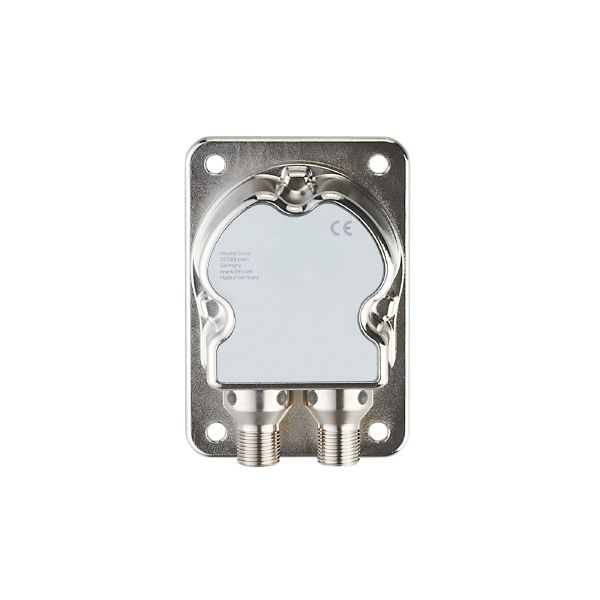

JN2201 Inclination sensor INC-M2M090ABIAKG/US

Code: JN2201

Precise measurement of angles of inclination on X and Y axes
High measurement accuracy across the total angular range in two axes
With two programmable switching outputs, two scalable analogue outputs and IO-Link
Compact and robust housing
High protection rating for the requirements of harsh industrial environments

Product characteristics

Inclination measurement

Number of measurement axes	2
Angular range [°]	± 45

Application

Operating principle	static
Application	High-precision inclination measurement in 2 axes for mobile and industrial applications

Electrical data

Operating voltage [V]	9.2...30 DC; (voltage output: 12...30 DC; IO-Link: 18...30 DC)
Current consumption [mA]	100; (24 V DC, 25 °C)
Max. current consumption [mA]	380; (9,2 V DC; -40 °C)
Protection class	III
Reverse polarity protection	yes
Reverse polarity protection	yes
Power-on delay time [s]	300; (warm-up time; Max. initialisation time: 1000 ms)

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 2

Outputs

Total number of outputs	4
Output signal	analogue signal; switching signal
Electrical design	PNP/NPN
Number of digital outputs	2
Output function	normally open / normally closed; (programmable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	125; (125 mA (85° C); 200 mA (60° C); 250 mA (40° C))
Number of analogue outputs	2
Analogue current output [mA]	4...20; (in case of a fault: 2 mA)
Max. load [Ω]	220; (220 (9,2…15 V) / 500 (15…30 V))
Analogue voltage output [V]	2...10; (in case of a fault: 1 V)
Min. load resistance [Ω]	1000; (10000 (12...13,5 V) / 1000 (13,5...30 V))
Precision analogue output [%]	≤ 1
Short-circuit protection	yes
Overload protection	yes

Measuring/setting range

Measuring principle	MEMS capacitive

Inclination measurement

Number of measurement axes	2
Angular range [°]	± 45
Limit frequency [Hz]	0.5...10; (parameterisable)

Accuracy / deviations

Accuracy [°]	≤ ± 0,01; (absolute)
Hysteresis [°]	≤ ± 0,05
Repeatability [°]	≤ ± 0,01
Resolution [°]	0.01
Temperature coefficient [1/K]	≤ ± 0,0008 °

Software / programming

Parameter setting options	angle (X/Y); hysteresis / window; switch points; switching logic; fault indication; self-test; current/voltage output

Interfaces

Communication interface

IO-Link

Transmission type

COM2 (38,4 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9 CDV

Profiles

Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis

SIO mode

yes

Required master port type

Process data analogue

Process data binary

Min. process cycle time [ms]

Supported DeviceIDs

Type of operation	DeviceID
Default	417

Operating conditions

Ambient temperature [°C]	-40...85
Storage temperature [°C]	-40...85
Protection	IP 65; IP 67; IP 68; IP 69K

Tests / approvals

EMC

DIN EN 61000-4-2 ESD	4 kV CD / 8 kV AD
DIN EN 61000-4-3 HF radiated	10 V/m
DIN EN 61000-4-4 Burst	2 kV
DIN EN 61000-4-6 HF conducted	10 V
DIN EN 55022 class B / CISPR 16-2-3	30 - 1000 MHz
CISPR 25 ECE R 10	30 - 1000 MHz narrowband and broadband
ISO 11452-2 ECE R 10	20 - 2000 MHz / 30 V/m
ISO 7637-2 ECE R 10	pulse 1, 2a, 2b, 3a, 3b, 4, and pulse emission during operation, switching-on, switching-off
ISO 7637-3	- 80 V pulse a / + 80 V pulse b

Shock resistance

DIN EN 60068-2-27	100 g 1 ms / 10000 impacts per axis (X/Y)
DIN EN 60068-2-29	30 g 6 ms / 24000 shock (bump)

Vibration resistance

DIN EN 60068-2-64	10...2000 Hz Test VII / random, mounting place car body
DIN EN 60068-2-6	10...500 Hz / 10 g 10 cycles/axis, sine

Salt spray test

DIN EN 60068-2-52

severity level 5 (motor vehicle)

Damp heat

DIN EN 60068-2-30

55 °C cyclic upper temperature / 95 % rh 2 cycles of 24 h

MTTF [years]

176

Standard

Compliant with ECE R 10, rev. 5; ISO 7637-3: 2007-07

Mechanical data

Weight [g]	451
Dimensions [mm]	90 x 62 x 33.2
Materials	housing: diecast zinc nickel-plated

Displays / operating elements

Display

operation	1 x LED, green
switch point	1 x LED, yellow

Accessories

Items supplied

Protective cover

Remarks

Pack quantity	1 pcs.

Electrical connection - digital

	Connector: 1 x M12; coding: A

Electrical connection - analogue

	Connector: 1 x M12; coding: A

Other data

Measuring/setting range

inclination measurement
			min.	max.
switch point	SP1	[°]	-89.00	90.00
reset point	rP1	[°]	-90.00	89.00
switch point	SP2	[°]	-89.00	90.00
reset point	rP2	[°]	-90.00	89.00
Analogue start point	ASP1	[°]	-90.00	89.00
Analogue end point	AEP1	[°]	-89.00	90.00
Analogue start point	ASP2	[°]	-90.00	89.00
Analogue end point	AEP2	[°]	-89.00	90.00
In steps of		[°]	0.01

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — JN2201-02 —
