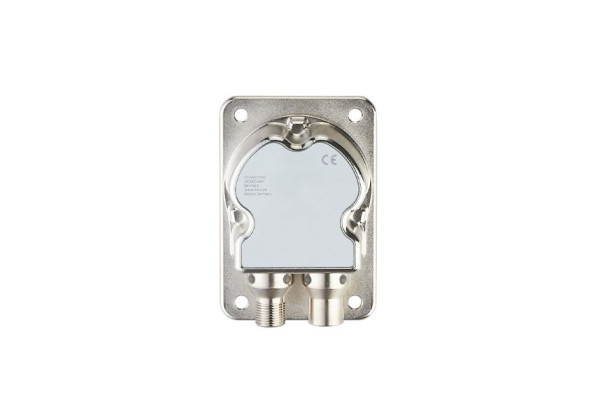

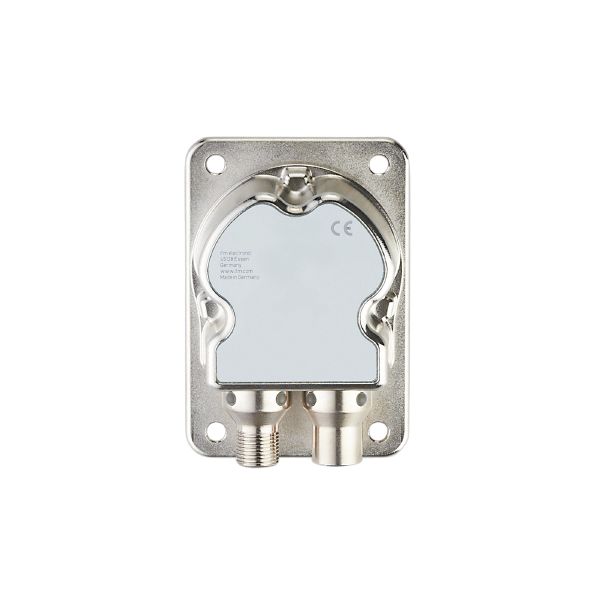

JN2300 Inclination sensor INC-M2M360J-KG/US

Code: JN2300

Precise measurement of angles of inclination on X and Y axes
High measurement accuracy across the total angular range in two axes
Zero point, counting direction and limit frequency adjustable
Compact and robust housing
High-performance CAN interface for various communication tasks

Product characteristics

Measuring principle	MEMS capacitive
Communication interface	CAN

Inclination measurement

Number of measurement axes	2
Angular range [°]	0…360 / ± 180

Application

Operating principle	static
Application	High-precision inclination measurement in 2 axes for mobile applications

Electrical data

Operating voltage [V]	9.2...30 DC
Current consumption [mA]	70; (24 V DC, 25 °C)
Max. current consumption [mA]	310; (9,2 V DC; -40 °C)
Min. insulation resistance [MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes
Reverse polarity protection	yes
Power-on delay time [s]	300; (warm-up time; Max. initialisation time: 1000 ms)

Measuring/setting range

Measuring principle	MEMS capacitive

Inclination measurement

Number of measurement axes	2
Angular range [°]	0…360 / ± 180
Limit frequency [Hz]	0.5...10; (parameterisable)

Vibration measurement

Measuring range of vibration [g]	16; (± 2; ± 4; ±8 g parameterisable)
Measuring range of vibration [mm/s]	3200
Frequency range [Hz]	0.1...400
Number of measurement axes	X/Y/Z parameterisable

Accuracy / deviations

Accuracy [°]	≤ ± 0,5; (absolute)
Hysteresis [°]	≤ ± 0.05
Repeatability [°]	≤ ± 0,1
Resolution [°]	0.1
Temperature coefficient [1/K]	≤ ± 0,02 °

Interfaces

Communication interface	CAN
Number of CAN interfaces	1
Terminating resistor	yes; (internal ; parameterisable)

CAN

Protocol

SAE J1939

Factory settings

Baud rate: 250 kBit/s

device address (ECU): 25

Operating conditions

Ambient temperature [°C]	-40...85
Storage temperature [°C]	-40...85
Protection	IP 65; IP 67; IP 68; IP 69K

Tests / approvals

EMC

DIN EN 61000-4-2 ESD	4 kV CD / 8 kV AD
DIN EN 61000-4-3 HF radiated	10 V/m
DIN EN 61000-4-4 Burst	2 kV
DIN EN 61000-4-6 HF conducted	10 V
DIN EN 55022 class B / CISPR 16-2-3	30 - 1000 MHz
CISPR 25 ECE R 10	30 - 1000 MHz narrowband and broadband
ISO 11452-2 ECE R 10	20 - 2000 MHz / 30 V/m
ISO 7637-2 ECE R 10	pulse 1, 2a, 2b, 3a, 3b, 4, and pulse emission during operation, switching-on, switching-off
ISO 7637-3	- 80 V pulse a / + 80 V pulse b

Shock resistance

DIN EN 60068-2-27	100 g 1 ms / 10000 impacts per axis (X/Y)
DIN EN 60068-2-29	30 g 6 ms / 24000 shock (bump)

Vibration resistance

DIN EN 60068-2-64	10...2000 Hz Test VII / random, mounting place car body
DIN EN 60068-2-6	10...500 Hz / 10 g 10 cycles/axis, sine

Salt spray test

DIN EN 60068-2-52

severity level 5 (motor vehicle)

Damp heat

DIN EN 60068-2-30

55 °C cyclic upper temperature / 95 % rh 2 cycles of 24 h

MTTF [years]

372

Standard

Compliant with ECE R 10, rev. 5; ISO 7637-3: 2007-07

Mechanical data

Weight [g]	415
Dimensions [mm]	90 x 62 x 33.2
Materials	housing: diecast zinc nickel-plated

Displays / operating elements

Display

Run mode	1 x LED, green
fault	1 x LED, red

Accessories

Items supplied

Protective cover: 1

Remarks

Pack quantity	1 pcs.

Electrical connection - CAN-In

	Connector: 1 x M12; coding: A

Electrical connection - CAN-Out

	Connector: 1 x M12; coding: A
