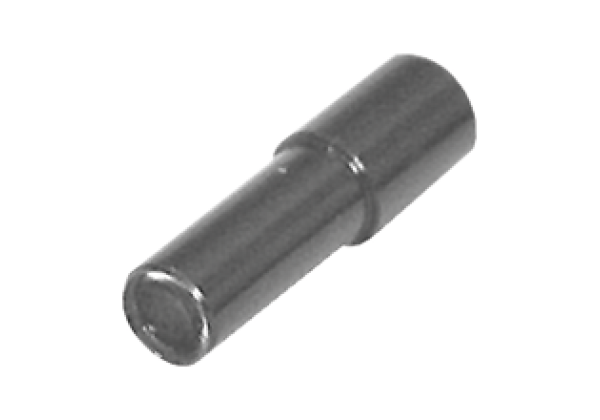

Fiber optic accessories, Auxiliary lens K-LA03
Brand: Pepperl+Fuchs
Code: K-LA03
Focusing lens, light spot size approx. 0.5 mm at 8 mm, M3 thread
Datasheet excerpt: Technical data of K-LA03
| Product Description |
|---|
| Focusing lens, light spot size approx. 0.5 mm at 8 mm, M3 thread |
| General specifications | ||
|---|---|---|
| Diameter of the light spot | approx. 0.5 mm at 8 mm | |
| Ambient conditions | ||
| Ambient temperature | -30... 200 °C (-22... 392 °F) | |
| Mechanical specifications | ||
| Material | plastic | |
| Mass | approx. 1 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273606 |
| ECLASS 12.0 | 27273606 |
| ECLASS 11.0 | 27273606 |
| ECLASS 10.0.1 | 27273606 |
| ECLASS 9.0 | 27273606 |
| ECLASS 8.0 | 27279208 |
| ECLASS 5.1 | 27279208 |
| ETIM 9.0 | EC001476 |
| ETIM 8.0 | EC001476 |
| ETIM 7.0 | EC002651 |
| ETIM 6.0 | EC001476 |
| ETIM 5.0 | EC002651 |
| UNSPSC 12.1 | 39121528 |
